Adding Titles to Object Page Tables

Adding Titles to Object Page Tables

You can add a title to an object page table.

To add a title to an object page table, provide a string value to the TypeNamePlural property of the UI.HeaderInfo annotation for the entity type with which the table is associated.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_C_MP_ProductTextType">
      <Annotation Term="UI.HeaderInfo">
          <Record>
              <PropertyValue Property="TypeName" String="Product Text" />
              <PropertyValue Property="TypeNamePlural" String="{@i18n>@TableTitle}" />
              <PropertyValue Property="Title">
                    <Record Type="UI.DataField">
                           <PropertyValue Property="Value" Path="Name" />
                    </Record>
              </PropertyValue>
             <PropertyValue Property="Description">
                    <Record Type="UI.DataField">
                        <PropertyValue Property="Value" Path="Language" />
                    </Record>
             </PropertyValue>
       </Record>
 </Annotation>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@UI.headerInfo: {
  typeName: 'Product Text',
  typeNamePlural: '{@i18n>@TableTitle}',
  title: {
    value: 'NAME',
    type: #STANDARD
  },
  description: {
    value: 'LANGUAGE',
    type: #STANDARD
  }
}
annotate view STTA_C_MP_PRODUCTTEXT with {

}

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ProductType @(
  UI.HeaderInfo : {
    TypeName : 'Product Text',
    TypeNamePlural : '{@i18n>@TableTitle}',
    Title : {
        $Type : 'UI.DataField',
        Value : Name
    },
    Description : {
        $Type : 'UI.DataField',
        Value : Language
    }
  }
);

Take the following into account:

  • TypeNamePlural is a mandatory parameter.

  • If the UI.HeaderInfo annotation hasn't been entered, the table title is also not displayed.

  • Make sure you provide the appropriate section titles if the same string is maintained under TypeNamePlural in the UI.HeaderInfo annotation.

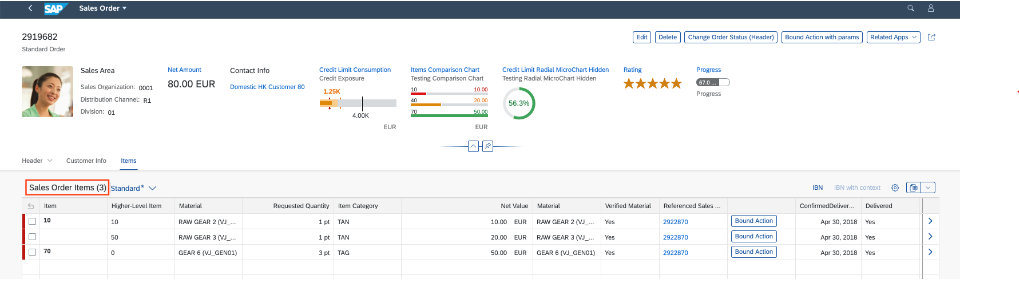

The results look like this:

Title for single table in object page section

Note

If a section or a subsection has only one type of control (table or chart), then the title of the section or subsection is hidden and is set as the control title.

Sections with tables or charts, whether custom or embedded, can choose to hide the section title and set it as the title for the table or chart.

For more information about setting section title to the control within reuse component , see Placing Reuse Component Instances on the Object Page.

For more information about setting section title to the control within custom section, see Adding a Custom Section to an Object Page.
