Example: Adding Columns to a Responsive Table on the Object Page

Example: Adding Columns to a Responsive Table on the Object Page

You have to implement two extension points to add a custom column to a table.

Context

Caution

Use app extensions with caution and only if you cannot produce the required behavior by other means, such as manifest settings or annotations. To correctly integrate your app extension coding with SAP Fiori elements, use only the extensionAPI of SAP Fiori elements. For more information, see Using the extensionAPI.

After you've created an app extension, its display (for example, control placement and layout) and system behavior (for example, model and binding usage, busy handling) lies within the application's responsibility. SAP Fiori elements provides support only for the official extensionAPI functions. Don't access or manipulate controls, properties, models, or other internal objects created by the SAP Fiori elements framework.

Additional Features in SAP Fiori Elements for OData V2

Additional Features in SAP Fiori Elements for OData V2

Context

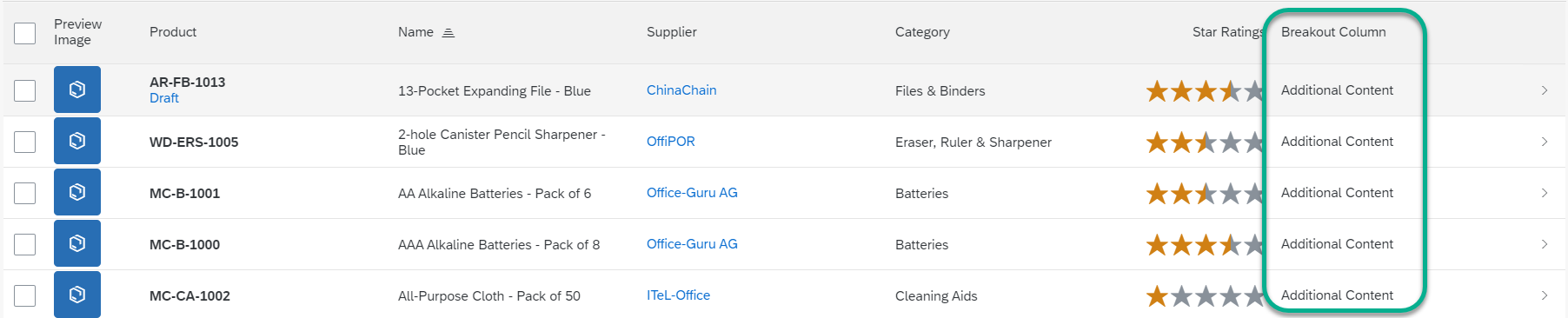

The table containing additional columns can look like this:

Custom columns in a responsive table on the object page

Procedure

  1. Define a fragment for the view extension.

    For a custom column in a responsive table, you have to implement two extensions. First, implement the definition of the custom columns and then implement the content of the custom columns.

    In the example project: webapp/ext/fragments/ProductTextResponsiveTableColumns.fragment.xml:

    Sample Code

    Hidden
    <core:FragmentDefinition xmlns:core="sap.ui.core"
       xmlns="sap.m">
       <Column>
              <Text text="{i18n|sap.suite.ui.generic.template.ObjectPage|STTA_C_MP_Product>xfld.BreakoutColumn}" />
              <customData>
                     <core:CustomData key="p13nData"
                            value='\{"columnKey": "Test", "columnIndex" : "101"}' />
              </customData>
       </Column>
</core:FragmentDefinition>

    In the example project: ProductTextResponsiveTableCells.fragment.xml:
    Sample Code

    Hidden
    <core:FragmentDefinition xmlns:core="sap.ui.core" xmlns="sap.m">
       <Text text="{i18n|sap.suite.ui.generic.template.ObjectPage|STTA_C_MP_Product>xfld.BreakoutColumnContent}"></Text>
</core:FragmentDefinition>

  2. Register your view extensions in the manifest.json file of your application as follows:
    For information on naming, see Extension Points for Tables.

    Sample Code

    Hidden
    ...
 "extends": {
      "component": "sap.suite.ui.generic.template.ListReport",
      "minVersion": "1.1.0",
      "extensions": {
        "sap.ui.viewExtensions": {
"sap.suite.ui.generic.template.ObjectPage.view.Details": {
            "ResponsiveTableColumnsExtension|STTA_C_MP_ProductText|to_ProductText::com.sap.vocabularies.UI.v1.LineItem": {
                  "className": "sap.ui.core.Fragment",
                  "fragmentName": "STTA_MP.ext.fragments.ProductTextResponsiveTableColumns",
                  "type": "XML"
            },
            "ResponsiveTableCellsExtension|STTA_C_MP_ProductText|to_ProductText::com.sap.vocabularies.UI.v1.LineItem": {
                  "className": "sap.ui.core.Fragment",
                  "fragmentName": "STTA_MP.ext.fragments.ProductTextResponsiveTableCells",
                  "type": "XML"
            }
      },

Additional Features in SAP Fiori Elements for OData V4

Additional Features in SAP Fiori Elements for OData V4

Context

You can find a detailed description of how to add custom columns to a table in the topic Extension Points for Tables.
