Adding Actions to Tables

Adding Actions to Tables

The table control offers the possibility to show generic actions, such as Create and Delete, as well as application-specific actions.

Generic Actions

SAP Fiori elements provides two generic actions (Create and Delete) that can be rendered in the toolbar based on metadata properties sap:creatable=true and sap:deletable=true of the entity set.

You can control the Insert capability for the related entities, that is the enablement of the Create button, using the following options:

Option 1: Using NavigationRestrictions

The system gives priority to the Org.OData.Capabilities.V1.NavigationRestrictions of the parent entity set if it is defined, and the InsertRestrictions provided directly at the table entity set level (Option 2 below) is ignored. Depending on the value of the Insertable property of InsertRestrictions, the related (table) entity set is made insertable or not insertable.

  • If Insertable is set as true, the related entity set is insertable.

  • If Insertable is set as false, the related entity set isn't insertable.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_Product">
  <Annotation Term="Capabilities.NavigationRestrictions">
    <Record>
        <PropertyValue Property="RestrictedProperties">
          <Collection>
            <Record>
               <PropertyValue Property="NavigationProperty" NavigationPropertyPath="to_ProductText"/>
               <PropertyValue Property="InsertRestrictions">
                  <Record>
                     <PropertyValue Property="Insertable" Bool="true"/>
                     <!--Example with Boolean value for InsertRestriction-->
                     <!-- <PropertyValue Property="Insertable" Path="Insertable"/>-->
                     <!--Example with path for InsertRestriction-->
                  </Record>
               </PropertyValue>
           </Record>
        </Collection>
        </PropertyValue>
    </Record>
  </Annotation>
</Annotation>

Sample Code

ABAP CDS Annotation

No ABAP CDS annotation is required, since the setting is made according to the modeling (such as create, update, or delete) in RAP BDEF (behavior definition).

Sample Code

Sample Code
Hidden
define behavior for STTA_C_MP_Product
{
  create;
  delete;
  update;

  association _ProductText
  { create;  }
};

Option 2: Using InsertRestrictions

  • If Insertable is set as true, the related entity set is insertable.

  • If Insertable is set as false, the related entity set isn't insertable.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductText">
  <Annotation Term="Capabilities.InsertRestrictions">
    <Record>
       <PropertyValue Property="Insertable" Bool="true" />
                    <!--Example with Boolean value for InsertRestriction-->

    </Record>
  </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

No ABAP CDS annotation is required, since the setting is made according to the modeling (such as create, update, or delete) in RAP BDEF (behavior definition).

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ProductText with @(
  Capabilities.InsertRestrictions : {
    Insertable : true,
  }
);

For more information, see Enabling Inline Creation Mode or Empty Row Mode for Table Entries.

Delete Action

The Delete button can be seen as an action on the table and it's disabled until a selection is made.

DeleteRestrictions also supports path-based values.

The Delete button is shown by default if DeleteRestrictions isn't provided.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="SAP__self.Container/SalesOrderManage">
   <Annotation Term="SAP__capabilities.DeleteRestrictions">
      <Record>
         <PropertyValue Property="Deletable" Bool="false"/>
      </Record>
   </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

No ABAP CDS annotation is required, since the setting is made according to the modeling (such as create, update, or delete) in RAP BDEF (behavior definition).

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate SAP__self.SalesOrderManage with {
  SAP__capabilities.DeleteRestrictions : {
    Deletable : false
  }
};

Note

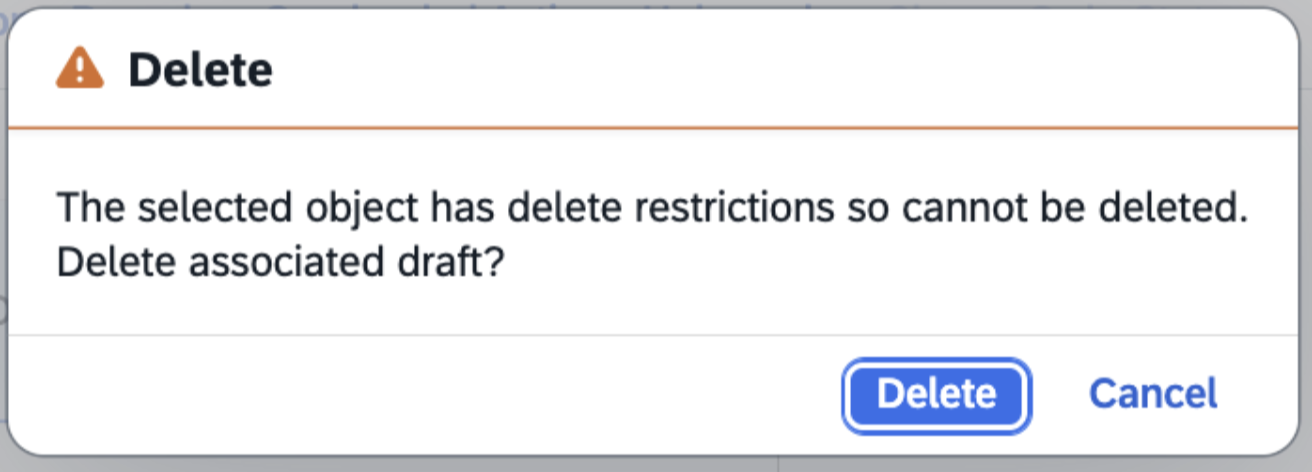

The Delete action can't be performed for any of the selected records if the deletion of one of the selected records fails in the back end. So the Delete action either works for all records or for none.

The system gives priority to the Org.OData.Capabilities.V1.NavigationRestrictions of the parent entity set. Depending on the value of the Deletable property of DeleteRestrictions, the related Delete button is shown or not.

  • If NavigationRestrictions has the setting Deletable=false, the Delete button for the child entity table is never visible.

  • If NavigationRestrictions has the setting Deletable=true or a path, the visibility of the Delete button for the child entity table depends on the value of UI.DeleteHidden of the child entity (that is, the table entity).

Sample Code

Hidden
<Annotations Target="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_Product">
  <Annotation Term="Capabilities.NavigationRestrictions">
    <Record>
        <PropertyValue Property="RestrictedProperties">
          <Collection>
            <Record>
               <PropertyValue Property="NavigationProperty" NavigationPropertyPath="to_ProductText"/>
               <PropertyValue Property="DeleteRestrictions">
                  <Record>
                     <PropertyValue Property="Deletable" Bool="false"/>
                  </Record>
               </PropertyValue>
           </Record>
        </Collection>
        </PropertyValue>
    </Record>
  </Annotation>
</Annotation>

Enable or Disable the Delete Button (Using deletable-path Annotations)

You can enable or disable the Delete button in the list report based on conditions specified in the back-end system. For example, you can disable the deletion for a sales order that has already been paid. In this case, if a user selects an item that can't be deleted, the Delete button is disabled. In addition, if the user navigates from this item in the list report to the object page, the Delete button is hidden.

In your annotation, set the deletable-path to point to a particular property of an object (entity) in the back-end system that is either true or false. If the value of this property is true, the Delete button is enabled; if it's false, it's disabled. If you want to use the deletable-path annotation to specify conditions for deletion, you have to ensure that the setting sap:deletable isn't present in your annotations.

The following sample code shows you how to set up your annotation to enable or disable the Delete button, based on the value of the Delete_mc property in the back-end system.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_Product">
    <Annotation Term="Org.OData.Capabilities.V1.DeleteRestrictions">
        <Record>
            <PropertyValue Property="Deletable" Path="Delete_mc"/>
        </Record>
    </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

No ABAP CDS annotation is required, since the setting is made according to the modeling (such as create, update, or delete) in RAP BDEF (behavior definition).

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_C_MP_Product with @(
    Capabilities.DeleteRestrictions : {
        Deletable : Delete_mc
    }
);

App-Specific Actions

Tables can also show application-configured actions. These can either be custom actions configured in the manifest.json, or can come from annotations.

Custom Actions (manifest.json)

Applications can define custom table toolbar actions using enhancements to the manifest.json file. For more information, see the corresponding sections in Adding Custom Actions Using Extension Points.

Annotation-Based Actions

The following types of actions are supported:

  • Actions that trigger a back-end call through the OData service, for example Approve or Unblock, represented by the complex type DataFieldForAction.

  • Actions that trigger navigation, for example to a different app, represented by the complex type DataFieldForIntentBasedNavigation. For more information, see Navigation from an App (Outbound Navigation).

Annotation-based actions can be inline actions. Inline actions are used to trigger actions directly for a single table row. Such an action shows up within the table control as a separate column. To set an action as an inline action, set the Inline property to true. The line item actions are then displayed as shown in the following screenshot:

Example: Actions in the Table Toolbar

Specifying a Text for an App-Specific Action

To specify a text for your action, use the com.sap.vocabularies.UI.v1.DataFieldForAction property and specify the text to be displayed.

For more information about adding a button triggering external navigation, see Navigation from an App (Outbound Navigation).

For more information about context-dependent and context-independent actions, see Actions.

The following code sample shows how to create your annotations for line item actions. Note that the UI.LineItem vocabulary term is used to define the columns for the table.

UI.LineItem

Sample Code

XML Annotation

Sample Code
Hidden
<Annotation Term="UI.LineItem">
   <Collection>
      <Record Type="UI.DataFieldForAction">
         <PropertyValue Property="Label" String="Copy with new Supplier"/>
         <PropertyValue Property="Action"
            String="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductCopywithparams"/>
         <PropertyValue Property="InvocationGrouping"
            EnumMember="UI.OperationGroupingType/Isolated"/>
      </Record>
      <Record Type="UI.DataFieldForAction">
         <PropertyValue Property="Label" String="Activate"/>
         <PropertyValue Property="Action"
            String="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductActivation"/>
         <PropertyValue Property="InvocationGrouping"
            EnumMember="UI.OperationGroupingType/ChangeSet"/>
      </Record>
      <Record Type="UI.DataField">
         <PropertyValue Property="Value" Path="Product"/>
         <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
      <Record Type="UI.DataField">
         <PropertyValue Property="Value" Path="ProductCategory"/>
         <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
      <Record Type="UI.DataField">
         <PropertyValue Property="Value" Path="to_Supplier/CompanyName"/>
         <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
      <Record Type="UI.DataField">
         <PropertyValue Property="Criticality" Path="to_StockAvailability/StockAvailability"/>
         <PropertyValue Property="Value" Path="to_StockAvailability/StockAvailability"/>
         <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
      <Record Type="UI.DataField">
         <PropertyValue Property="Value" Path="Price"/>
         <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
      <Record Type="UI.DataFieldForAction">
         <PropertyValue Property="Label" String="Copy"/>
         <PropertyValue Property="Action"
            String="STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductCopy"/>
         <PropertyValue Property="Inline" Bool="true"/>
         <PropertyValue Property="InvocationGrouping"
            EnumMember="UI.OperationGroupingType/Isolated"/>
      </Record>
      <Record Type="UI.DataFieldForIntentBasedNavigation">
         <PropertyValue Property="Label" String="Manage Products (ST)"/>
         <PropertyValue Property="SemanticObject" String="EPMProduct"/>
         <PropertyValue Property="Action" String="manage_st"/>
         <PropertyValue Property="Inline" Bool="true"/>
      </Record>

      <Record Type="UI.DataFieldWithIntentBasedNavigation">
         < PropertyValue Property ="Label" String ="Weight (with IBN)" />
         < PropertyValue Property ="Action" String ="manage_st_test" />
         <PropertyValue Property="Value" Path="Weight"/>
         <PropertyValue Property="SemanticObject" String="EPMProduct" />
          <Annotation Term="UI.Importance" EnumMember="UI.ImportanceType/High"/>
      </Record>
    </Collection>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@UI.lineItem: [
  {
    label: 'Copy with new Supplier',
    dataAction: 'PUSHDOWN:STTA_C_MP_ProductCopywithparams',
    invocationGrouping: #ISOLATED,
    type: #FOR_ACTION,
    position: 1
  },
  {
    label: 'Activate',
    dataAction: 'PUSHDOWN:STTA_C_MP_ProductActivation',
    invocationGrouping: #CHANGE_SET,
    type: #FOR_ACTION,
    position: 2
  },
  {
    label: 'Product',
    importance: #HIGH,
    value: 'PRODUCT',
    type: #STANDARD,
    position: 3
  },
  {
    label: 'Copy',
    dataAction: 'PUSHDOWN:STTA_C_MP_ProductCopy',
    invocationGrouping: #ISOLATED,
    type: #FOR_ACTION,
    position: 8
  }
]

Sample Code

CAP CDS Annotation

Sample Code
Hidden
UI.LineItem : [
    {
        $Type : 'UI.DataFieldForAction',
        Label : 'Copy with new Supplier',
        Action : 'STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductCopywithparams',
        InvocationGrouping : #Isolated
    },
    {
        $Type : 'UI.DataFieldForAction',
        Label : 'Activate',
        Action : 'STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductActivation',
        InvocationGrouping : #ChangeSet
    },
    {
        $Type : 'UI.DataField',
        Value : Product,
        ![@UI.Importance] : #High
    },
    {
        $Type : 'UI.DataField',
        Value : ProductCategory,
        ![@UI.Importance] : #High
    },
    {
        $Type : 'UI.DataField',
        Value : to_Supplier.CompanyName,
        ![@UI.Importance] : #High
    },
    {
        $Type : 'UI.DataField',
        Criticality : to_StockAvailability.StockAvailability,
        Value : to_StockAvailability.StockAvailability,
        ![@UI.Importance] : #High
    },
    {
        $Type : 'UI.DataField',
        Value : Price,
        ![@UI.Importance] : #High
    },
    {
        $Type : 'UI.DataFieldForAction',
        Label : 'Copy',
        Action : 'STTA_PROD_MAN.STTA_PROD_MAN_Entities/STTA_C_MP_ProductCopy',
        Inline : true,
        InvocationGrouping : #Isolated
    },
    {
        $Type : 'UI.DataFieldForIntentBasedNavigation',
        Label : 'Manage Products (ST)',
        SemanticObject : 'EPMProduct',
        Action : 'manage_st',
        Inline : true
    },
    {
        $Type : 'UI.DataFieldWithIntentBasedNavigation',
        Label : 'Weight (with IBN)',
        Value : Weight,
        SemanticObject : 'EPMProduct',
        Action : 'manage_st'
    }
]

In the example above, the order in which the record types are presented in the annotation determines the order in which they appear in the table columns:

  • For the first two record types, the DataFieldForAction complex type doesn't contain the Inline property, which means that the action button appears in the table toolbar. If the Inline property is there and set to false, the action button is also displayed in the table toolbar.

  • With the next five record types, the DataField complex type is used to define the data for a column within the table.

  • With the last but two record types, the DataFieldForAction and DataFieldForIntentBasedNavigation complex types are used and contain the Inline property, which is set to true. This means the action buttons appear in every row in the appropriate column within the table.

  • With the last record type, the DataFieldWithIntentBasedNavigation complex type is used to render the property value as a link, allowing for navigation to the semantic object.

Additional Features in SAP Fiori Elements for OData V2

Delete Action

The Delete button is shown by default if DeleteRestrictions is not provided. Note that if you want to specify conditions for deletion (using the deletable-path annotation), you must ensure that the setting sap:deletable has not been made.

Inline Deletion of Rows in Tables

You can enable inline deletion list report and object page tables. To do so, set the inlineDelete property to true for tableSettings as shown in the following sample code:

Sample Code

Hidden
"tableSettings": {
     "inlineDelete": true
}

After you enable this setting, a Delete button is displayed at the end of the row in the table.

Note

  • The inline deletion is only possible for responsive table types.

  • The inlineDelete and multiselect cannot be enabled simultaneously. If both are enabled, the application fails to load.

  • If you have set delete restrictions and the restriction path property is set to false for the item, the item cannot be deleted.

Additional Features in SAP Fiori Elements for OData V4

Enabling the Create button using NavigationRestrictions

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_Product with @(
  Capabilities.NavigationRestrictions : {
    RestrictedProperties : [
        {
            NavigationProperty : to_ProductText,
            InsertRestrictions : {
                Insertable : true
            }
        }
    ]
  }
);

Showing or Hiding the Create Button

You can control the visibility of the Create button depending on the UI.CreateHidden annotation. The annotation can be a Boolean value or can point to a path. In your annotation, set the path to point to a particular property (either true or false) of the parent object. If the value of the property is true, then the Create button is hidden; if it's false, it's visible.

The following sample code shows you how to hide or show the Create button, depending on the isCreateHidden property of the parent entity:

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="com.c_salesordermanage_sd.EntityContainer/HeaderPartner">
   <Annotation Term="UI.CreateHidden" Path="owner/isCreateHidden"/>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@UI.createHidden: #(_Root.isCreateHidden)

Sample Code

CAP CDS Annotation

Sample Code
Hidden
Annotate com.c_salesordermanage_sd.HeaderPartner with @( UI.CreateHidden: owner.isCreateHidden);

Showing or Hiding the Delete Button

You can control the visibility of the Delete button depending on the UI.DeleteHidden annotation. The annotation can be a Boolean value or can point to a path. In your annotation, set the path to point to a particular property (either true or false) of the parent object. If the value of the property is true, then the Delete button is hidden; if it's false, it's visible.

The following sample code shows you how to hide or show the Delete button, depending on the isDeleteHidden property of the parent entity.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="com.c_salesordermanage_sd.EntityContainer/HeaderPartner">
   <Annotation Term="UI.DeleteHidden" Path="owner/isDeleteHidden"/>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@UI.deleteHidden: #(_Root.isDeleteHidden)

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate com.c_salesordermanage_sd.SalesOrderManage with @( UI.DeleteHidden: owner.isDeleteHidden);

Handling Delete Restrictions in the List Report

In the list report, the delete restrictions set on a table entity are evaluated for the saved version of the entity and not for the draft. So, when the user selects a non-deletable entity with an existing draft, the Delete button is still enabled. The delete action affects only the draft, not the saved version.

Hidden

Defining the Order of Standard Actions

You can define the order of standard actions in the table toolbar. To do so, define the properties anchor and position for each action corresponding to the action key in the manifest.json. The following table shows the keys and the corresponding standard actions:

Key Standard Action
Create StandardAction::Create
Delete StandardAction::Delete
MassEdit StandardAction::MassEdit
Delete StandardAction::'Insights'
Sample Code

Hidden
{ "sap.ui5": {
     "routing": {
        "targets": {
            "SalesOrderManageList": {
                "options": {
                    "settings": {
                        "controlConfiguration": {
                            "@com.sap.vocabularies.UI.v1.LineItem": {
                                "actions": { "StandardAction::Delete": {
                                    "position": {
                                        "anchor": "StandardAction::Create",
                                        "placement": "Before"
                                        }
                                    },
                                    "CustomAction": {
                                        "press": "SalesOrder.custom.CustomActions.CustomAction1",
                                        "enabled": true, "text": "Custom Action",
                                        "command": "COMMON", "position": {
                                            "anchor": "StandardAction::Create",
                                            "placement": "After"
                                            }
                                        }
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    }
}

Enabling the Update or Delete Feature for the Table

You can control the editability of table fields using UpdateRestrictions.

Hidden
<Annotations Target="com.c_salesordermanage_sd.EntityContainer/Material">
    <Annotation Term="Capabilities.UpdateRestrictions">
        <Record Type="Capabilities.UpdateRestrictionsType">
            <PropertyValue Property="Updatable" Path="owner.isUpdatable"/>
        </Record>
    </Annotation>
</Annotations>

You can control the Delete functionality of tables by using DeleteRestrictions.

Hidden
<Annotations Target="com.c_salesordermanage_sd.EntityContainer/Material">
    <Annotation Term="Capabilities.DeleteRestrictions">
        <Record Type="Capabilities.DeleteRestrictionsType">
            <PropertyValue Property="Deletable" Path="owner.isDeletable"/>
        </Record>
    </Annotation>
</Annotations>
Sample Code

CDS annotation for deletable-path

Hidden
annotate com.c_salesordermanage_sd.SalesOrderManagewith @Capabilities: {Insertable: false, Deletable:'isDeletable', Updatable: true}

Sample Code

ABAP CDS Annotation for deletable-path

No ABAP CDS annotation sample is available. Please use the local XML annotation.

Enabling Single Selection for a Bound Action

Applications can control the number of table records that need to be selected for the bound action to be enabled. For more information, see Actions. By default, for a bound action, this is 1 or more applicable records (that is, 1 or more records for which OperationAvailable evaluates to true). However, applications can change this configuration so that the action is enabled only when a single applicable record is selected. If more records are selected, then the action is disabled again. Applications can do this by specifying the enableOnSelect property in the manifest.json:

Sample Code

Table Actions

Hidden
"@com.sap.vocabularies.UI.v1.LineItem": {
    "actions": {
        "DataFieldForAction::com.c_salesordermanage_sd.CreateWithSalesOrderType": {
            "enableOnSelect": "single" // Possible values: "single", "multi" (default)
        }
    }
}

Sample Code

Chart Actions

Hidden
"@com.sap.vocabularies.UI.v1.Chart": {
    "actions": {
        "DataFieldForAction::com.c_salesordermanage_sd.CreateWithSalesOrderType": {
            "enableOnSelect": "single" // Possible values: "single", "multi" (default)
        }
    }
}

Note

  • The setting isn't applicable for inline actions (where only the context of the row of the pressed button is passed) and for static or unbound actions (where no context is passed).

  • The feature is only supported for annotation-based actions.

Working with the Create Dialog in POST-Based Create

When you create new table records using the POST mechanism, that is, not using NewAction, and provided that the entity set on which the create is being performed has visible non-computed key fields, then these fields are brought up in a dialog so that users can enter values before the create is performed. Since the key fields are immutable, that is, not changeable after the initial create, the dialog is the only chance for users to enter values. The dialog also comes up for the following fields:

  • key fields that are based on Edm.GUID, annotated with Core.ComputedDefaultValue, and have a text association

  • fields that are marked as required for create using InsertRestrictions/RequiredProperties. Note that InsertRestrictions/RequiredProperties, if they are part of NavgationRestrictions of the parent entity, will take precedence over the same annotations directly at the level of the table entity set.

  • other non-key immutable fields (non-hidden and non-computed) in the main entity set

Tip

The dialog does not come up when you use inline creation mode.

Sample Code

XML Annotation for ComputedDefaultValue

Sample Code
Hidden
<Annotations Target="com.c_salesordermanage_sd.SalesOrderManage/ID">
    <Annotation Term="Common.Text" String="SalesOrder">
        <Annotation Term="UI.TextArrangement" EnumMember="UI.TextArrangementType/TextOnly" />
    </Annotation>
    <Annotation Term="Common.Label" String="Sales Order" />
    <Annotation Term="Core.ComputedDefaultValue" Bool="true" />
</Annotations>

Sample Code

ABAP CDS Annotation for Core.ComputedDefaultValue

No ABAP CDS annotation sample is available. Please use the local XML annotation.

Sample Code

CAP CDS Annotation for ComputedDefaultValue

Sample Code
Hidden
entity SalesOrderManage @(
    title        : 'Manage Sales Order'
) {
    key ID : UUID @(
            title         : 'Sales Order',
            Common        : {
                Text            : SalesOrder,
                TextArrangement : #TextOnly
            },
            Core.ComputedDefaultValue : true
        );
    .....
    .....
}

Sample Code

XML Annotation for InsertRestrictions/RequiredProperties

Sample Code
Hidden
<Annotation Term="Capabilities.InsertRestrictions">
    <Record Type="Capabilities.InsertRestrictionsType">
        <PropertyValue Property="Insertable" Bool="true"/>
        <PropertyValue Property="RequiredProperties">
            <Collection>
                <PropertyPath>PurchaseOrderByCustomer</PropertyPath>
            </Collection>
        </PropertyValue>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation for InsertRestrictions/RequiredProperties

No ABAP CDS annotation sample is available. Please use the local XML annotation.

Sample Code

CAP CDS Annotation for InsertRestrictions/RequiredProperties

Sample Code
Hidden
InsertRestrictions     : {
  Insertable         : true,
  RequiredProperties : [PurchaseOrderByCustomer]
}

Rendering Buttons with an Icon Instead of Text

The text for the inline DataFieldForAction and the DataFieldForIntentBasedNavigation buttons can be replaced with an icon, as specified in the "IconUrl" annotation property. The label of the button then appears as the tooltip of the button.

Note

  • If you use icons, the "Criticality" of the DataFieldForAction and DataFieldForIntentBasedNavigation is ignored.

  • The feature is supported only for inline table actions and navigation buttons, not for buttons used elsewhere.

  • Use icon buttons only for basic standard icon metaphors. For more information, see Button Content in SAP Fiori Design Guidelines.

DataFieldForAction

Sample Code

XML Annotation

Sample Code
Hidden
<Record Type="UI.DataFieldForAction">
    <PropertyValue Property="Label" String="Navigate via Action"/>
    <PropertyValue Property="Action" String="com.c_salesordermanage_sd.ActionNavigation"/>
    <PropertyValue Property="Inline" Bool="true"/>
    <PropertyValue Property="IconUrl" String="sap-icon://arrow-right"/>
</Record>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
{
    label: 'Navigate via Action',
    dataAction: 'com.c_salesordermanage_sd.ActionNavigation',
    iconUrl: 'sap-icon://arrow-right'
    type: #FOR_ACTION
}

Note

Inline is not supported in ABAP CDS.

Sample Code

CAP CDS Annotation

Sample Code
Hidden
{
    $Type             : 'UI.DataFieldForAction',
    Label             : 'Navigate via Action',
    Action            : 'com.c_salesordermanage_sd.ActionNavigation',
    Inline            : true,
    IconUrl           : 'sap-icon://arrow-right'
},
}

DataFieldForIntentBasedNavigation

Sample Code

XML Annotation

Sample Code
Hidden
<Record Type="UI.DataFieldForIntentBasedNavigation">
    <PropertyValue Property="SemanticObject" String="v4Freestyle"/>
    <PropertyValue Property="Action" String="Inbound"/>
    <PropertyValue Property="Label" String="IBN Inline"/>
    <PropertyValue Property="RequiresContext" Bool="true"/>
    <PropertyValue Property="Inline" Bool="true"/>
    <PropertyValue Property=" IconUrl" String="sap-icon://arrow-left"/>
</Record>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@UI.lineItem: [
  {
    semanticObjectAction: 'Inbound',
    label: 'IBN Inline',
    requiresContext: true,
     iconUrl: 'sap-icon://arrow-left'
    type: #FOR_INTENT_BASED_NAVIGATION
  }
]
TEST;

@Consumption.semanticObject: 'v4Freestyle'
%ENTITY;

Note

Inline is not supported in ABAP CDS.

Sample Code

CAP CDS Annotation

Sample Code
Hidden
{
    $Type             : 'UI.DataFieldForIntentBasedNavigation',
    SemanticObject    : 'v4Freestyle',
    Action            : 'Inbound',
    Label             : 'IBN Inline',
    RequiresContext   : true,
    Inline            : true,
    IconUrl           : 'sap-icon://arrow-left'
}

Grouping Actions as Menu Buttons

Actions that have a similar business purpose can be grouped together and rendered in the form of menu buttons. For more information, see Actions.

Triggering Actions Connected to a Field Value

You can trigger an action that is connected to a field value. The field value is displayed as a link. The action to be triggered is defined by the Action property.

Sample Code

XML Annotation

Sample Code
Hidden
<Record Type="UI.DataFieldWithAction">
    <PropertyValue Property="Value" Path="PurchaseOrderByCustomer"/>
    <PropertyValue Property="Action" String="com.c_salesordermanage_sd.ActionDataFieldWith"/>
    <PropertyValue Property="Label" String="Customer Reference"/>
</Record>

Sample Code

ABAP CDS Annotation

No ABAP CDS annotation sample is available. Please use the local XML annotation.

Sample Code

CAP CDS Annotation

Sample Code
Hidden
{
    $Type : 'UI.DataFieldWithAction',
    Value : PurchaseOrderByCustomer,
    Label : 'Customer Reference',
    Action : 'com.c_salesordermanage_sd.ActionDataFieldWith'
},

To pass the field value to an action parameter, use the annotation term ParameterDefaultValue to set specific values in the action parameters.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="com.c_salesordermanage_sd.ActionDataFieldWith(com.c_salesordermanage_sd.SalesOrderManage)/PurchaseOrderByCustomer">
    <Annotation Term="UI.ParameterDefaultValue" Path="_it/PurchaseOrderByCustomer"/>
    <Annotation Term="Common.Label" String="Customer Reference"/>
</Annotations>

You can also trigger an action that is connected to a field value on a form.

Note

In applications where links are annotated with DataFieldWithAction, the context menu does not show the Open in New Tab and Open in New Window options when an end user right-clicks on them.
