Step 10: Adding More Pages

Step 10: Adding More Pages

In this step, we create an additional page that is displayed in a separate fullscreen column.

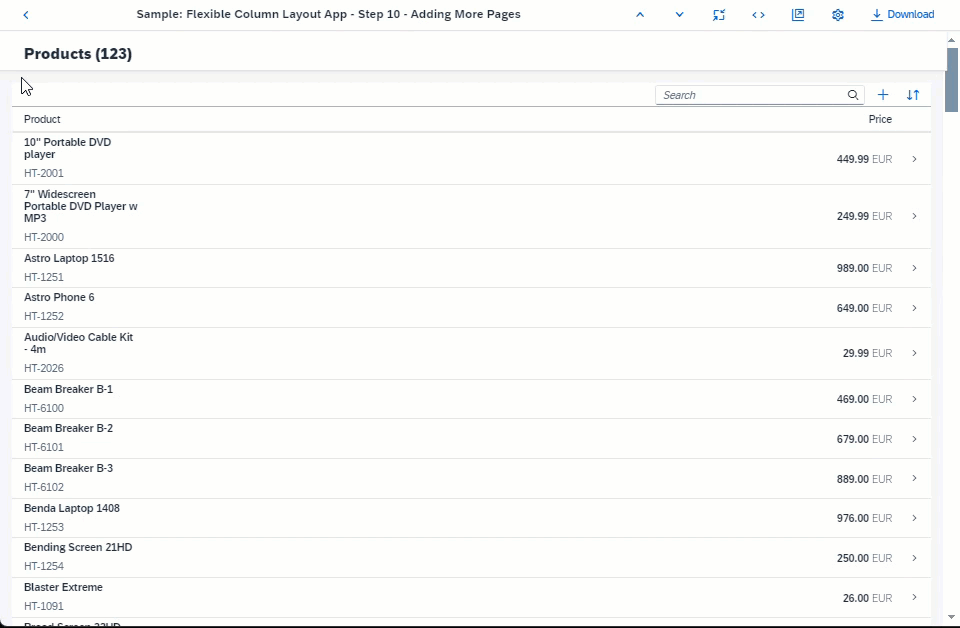

Preview

Additional page displayed in a separate fullscreen column

Coding

You can view and download all files at Flexible Column Layout App - Step 10.

webapp/view/AboutPage.view.xml [NEW]

Hidden
<mvc:View
	xmlns="sap.m"
	xmlns:f="sap.f"
	xmlns:mvc="sap.ui.core.mvc">
	<f:DynamicPage toggleHeaderOnTitleClick="false">
		<!-- DynamicPage Title -->
		<f:title>
			<f:DynamicPageTitle>
				<f:heading>
					<Title text="About supplier"/>
				</f:heading>
			</f:DynamicPageTitle>
		</f:title>
	</f:DynamicPage>
</mvc:View>

We create a simple additional page view.

webapp/manifest.json [MODIFY]

Hidden
			...
			"routes": [
				{
					"pattern": "page2",
					"name": "page2",
					"target": "page2",
					"layout": "EndColumnFullScreen"
				},
				{
					"pattern": ":layout:",
					"name": "list",
					"target": [
						"list",
						"detail"
					]
				},
				{
					"pattern": "detail/{product}/{layout}",
					"name": "detail",
					"target": [
						"list",
						"detail"
					]
				},
				{
					"pattern": "detail/{product}/detailDetail/{supplier}/{layout}",
					"name": "detailDetail",
					"target": [
						"list",
						"detail",
						"detailDetail"
					]
				}
			],
			"targets": {
				"list": {
					"name": "List",
					"controlAggregation": "beginColumnPages"
				},
				"detail": {
					"name": "Detail",
					"controlAggregation": "midColumnPages"
				},
				"detailDetail": {
					"name": "DetailDetail",
					"controlAggregation": "endColumnPages"
				},
				"page2": {
					"name": "AboutPage",
					"controlAggregation": "endColumnPages"
				}
			}
		}
	}
}

Similar to the previous step, we add the additional page view to our existing routes in the manifest.json.

webapp/view/DetailDetail.view.xml [MODIFY]

Hidden
<mvc:View
	controllerName="sap.ui.demo.fcl.controller.DetailDetail"
	xmlns="sap.f"
	xmlns:m="sap.m"
	xmlns:mvc="sap.ui.core.mvc">
	<DynamicPage toggleHeaderOnTitleClick="false">
		<title>
			<DynamicPageTitle>
				<heading>
					<m:FlexBox wrap="Wrap" fitContainer="true" alignItems="Center">
						<m:Title text="{products>text}" wrapping="true" class="sapUiTinyMarginEnd"/>
					</m:FlexBox>
				</heading>
			</DynamicPageTitle>
		</title>
		<content>
			<m:Link text="Navigate to next page…" press=".handleAboutPress"/>
		</content>
	</DynamicPage>
</mvc:View>

We add a link in the detail-detail page with a press event handler.

webapp/controller/DetailDetail.controller.js [MODIFY]

Hidden
sap.ui.define([
	"sap/ui/core/mvc/Controller",
	'sap/f/library'
], function (Controller, fioriLibrary) {
	"use strict";

	return Controller.extend("sap.ui.demo.fcl.controller.DetailDetail", {
		onInit: function () {
			var oOwnerComponent = this.getOwnerComponent();

			this.oRouter = oOwnerComponent.getRouter();
			this.oModel = oOwnerComponent.getModel();

			this.oRouter.getRoute("detailDetail").attachPatternMatched(this._onPatternMatch, this);
		},

		handleAboutPress: function () {
			this.oRouter.navTo("page2", {layout: fioriLibrary.LayoutType.EndColumnFullScreen});
		},

		_onPatternMatch: function (oEvent) {
		...

Finally, we add a handleAboutPress function in the detail-detail page controller to navigate to the additional page without passing any data this time.
