Column Configuration

The column configuration is an array of JSON objects that is assigned to the column property of the export configuration.

var exportConfiguration = {
    workbook: {
        columns: [
            {
                // Place your column definition here
            }
        ]
    }
}

First you need to identify all the columns you want to export, since there has to be a column definition object for every column that is exported. Regardless of the data source (OData or JSON array), each row represents an instance of an entity with several properties, and each row is mapped to one of these properties. It is also possible to map multiple properties to a single column.

A column definition object is a JSON object that contains at least one property property that maps the column to the property of the entity. Its value must be of type string or an array of strings and must not be empty; otherwise the column definition is invalid. The string value must contain the name of a property of the entity. If there is no property with the given name, the column in the exported Office Open XML spreadsheet will be empty.

Property Types

Apart from the property property, a column definition can have additional properties. The following properties are used:

• Type-independent

• Type-dependent

The following table shows the different kind of properties.

The label property is optional, and its value must be of type string. Its value will be used as column header for the column. If no label property has been provided, the value of the property property will be used instead.

The optional type property defines the data type for this column and needs to match one of the values of the sap.ui.export.EdmType enumeration. If the type property has not been defined or the enumeration does not contain its value, the default type (sap.ui.export.EdmType.String) is used. For more information, see the API Reference: EdmType.

The optional width property defines the column width based on the number of characters that can be visible. The Office Open XML spreadsheet standard uses a width calculation that is not equivalent to the CSS sizes. Therefore, the calculation is handled by the library. If no width property has been provided, or if its value is smaller than 1, the default width is used. The default width is 10 characters. If the column header text has a length that is greater than the actual width, it will override the width with the length of the column header text.

The optional textAlign property defines the horizontal text alignment. Its value must be of type string and either be left, right, or center. Other CSS alignments like begin or end are not supported. If no textAlign property has been provided or its value is empty or not supported, the default alignment is used. The default alignment is defined by the type of the column. This is done by the application using the scenario and the generated Office Open XML spreadsheet, for example, Microsoft Excel.

The following code shows you an example of a column definition:

var exportConfiguration = {
    workbook: {
        columns: [
            {
                property: "Firstname",
                width: 15
            },
            {
                property: "Lastname",
                width: 15
            },
            {
                property: "User",
                label: "Username",
                width: 20
            },
            {
                property: "Attempts",
                label: "Login Attempts",
                type: sap.ui.export.EdmType.Number
            },
            {
                property: "LastLogin",
                label: "Last Successful Login",
                type: sap.ui.export.EdmType.DateTime
                width: 20,
                textAlign: "center"
            }
        ]
    }
}


Data Source Configuration

Apart from the column configuration, data source configuration is the most important configuration for the export process. Data source configuration is mandatory. It can be a JSON array containing all data, a JSON object, sap.ui.model.ListBinding, or sap.ui.model.TreeBinding. If it is a JSON object, the following properties are required:

Data Source Configuration Properties

Property	Type	Optional	Description
type	string		Defines the type of the data service that provides the data. If it is an OData service, the value odata must be assigned.
dataUrl	string		Request URL that is needed to request the data with all the filters and its order. The URL can either be relative or absolute. If the URL is relative, the current origin will be used as a host.
serviceUrl	string		URL of the data service that serves the entity which is requested by the dataUrl. It is usually a substring of dataUrl. The URL can either be relative or absolute. If dataUrl is relative, serviceUrl must not be absolute. Note This property is required if OData batch requests are enabled.
count	number		Indicator of the line items available through the service. During the export process there is neither a dedicated $count request nor is the inlineCount request property used. If count is provided, it splits the requests so that not all data is requested at once, and the progress indicator can show reliable information. Note If the OData service is an analytical service, the ratio of processing time and number of queried items is not linear. For example, 200 items take up about two seconds, 1,000 items about 2.2 seconds. Therefore, it might be necessary to configure the requested size using the sizeLimit property.
useBatch	boolean		If set to true, the export library will use OData batch requests. Once batch requests are enabled, you'll have to provide the serviceUrl and headers properties. If batch requests are not supported by your OData service, you can disable this functionality by setting this property to false.
headers	object		Provides additional request headers within an OData batch request. Every property you add to the headers object will be put into the HTTP header section of the respective GET request within the batch request. Note This property is required if OData batch requests are enabled.
sizeLimit	number		Defines the number of records that are requested from the service with a single request. This is important to make fine adjustments.
downloadLimit	number		Defines the maximum number of rows that can be exported. If not specified, all rows are exported.

The following code shows you an example of data source configuration:

/* JSON array as dataSource */
var exportConfiguration = {
    dataSource: [
        // Several line items that contain actual data
    ]
}
/* OData service as dataSource */
exportConfiguration = {
    dataSource: {
        type: "odata",
        dataUrl: "/sap/opu/odata/sap/MM_PUR_PODWNPAYT_MNTR_SRV/C_PurOrdDownPaymentMntr(P_DisplayCurrency=%27EUR%27)/Results?sap-client=715&$format=json&$select=PurchaseOrder,PurchaseOrderItem,DisplayCurrency,DownPaymentsRequest,NetAmount,PurchasingDocumentStatus&$filter=(Supplier%20eq%20%2710300001%27)&$orderby=PurchasingDocumentStatus%20asc",
        serviceUrl: "/sap/opu/odata/sap/MM_PUR_PODWNPAYT_MNTR_SRV",
        count: 17491,
        useBatch: true,
        headers: {
            /* Some sample headers DO NOT copy them */
            "Accept": "application/json",
            "Accept-Language": "en",
            "sap-cancel-on-close": "true",
            "DataServiceVersion": "2.0",
            "x-csrf-token": "XvR_WdN7nCw83ngZnH9lZQ=="
        },
        sizeLimit: 500
    }
}

Context Information

Apart from the mandatory configuration, you can add context information to the generated Office Open XML spreadsheet. This part of the configuration is optional. It is provided within a JSON object that is assigned to the context property within the workbook object of the export configuration. Built-in properties are not visible on a data sheet and stored as document properties in the generated file while custom metadata is visible on a data sheet in the workbook.

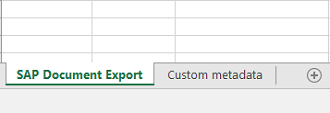

The sap.ui.export.Spreadsheet library always exports the actual data to the main sheet of the Office Open XML spreadsheet but it can also add an additional sheet for meta information. The consuming applications can then assign their own specific names to both sheets.

The following code shows you an example of context configuration:

var exportConfiguration = {
    workbook: {
        context: {
            // Place your context information here
        }
    }
}

You can use the following properties:

The following code shows you an example of context configuration with some of the properties mentioned:

var exportConfiguration = {
    workbook: {
        context: {
            application: "Supplier Invoices List",
            version: "6.1",
            title: "Supplier Invoices",
            modifiedBy: "Doe, John",
            sheetName: "Invoices"
        }
    }
}

The following code shows you an example of context configuration with the metainfo property:

var exportConfiguration = {
    workbook: {
        context: {
            metainfo: [
                {
                    name: "Application settings",
                    items: [
                        {
                            key: "Name",
                            value: "Purchase Orders"
                        },
                        {
                            key: "Version",
                            value: "1.23.8742-p"
                        }
                    ]
                }
            ]
        }
    }
}

Configuration of Additional Properties

The sap.ui.export.Spreadsheet library offers some other additional properties that you can configure. This part of the configuration is also optional.

The following properties are available for configuration:

• count (type number)

  The value of this property must be positive. This property is only used if dataSource is a plain string. If this is the case, it is taken over as dataSource.count.

• worker (type boolean)

  The export process runs in a dedicated web worker by default. The worker property allows you to disable this functionality. A web worker runs in a separate thread and does not affect the performance of the browser window's main thread.

  Although it has some advantages to use a web worker, it can also cause some problems. Especially if SAPUI5 is loaded from a Content Delivery Network (CDN) and is not served by the original host, it depends on the Content Security Policy (CSP) of the server if the export can be processed in a web worker. To resolve problems related to this scenario, you should either add a worker-src directive to your CSP or disable the web worker functionality. If the web worker functionality is disabled, the export process will run in the main thread of the browser window. Currently, the worker-src directive is not fully supported by all browsers. If you can't set the worker-src directive, you can also adjust the fallback directive script-src.

  Note

  The script-src directive will also affect all other scripts that are loaded on your page.

• fileName (type string)

  Defines a particular name for the generated export file. The file extension is added to the given file name and is always xlsx. To take effect, the property must not be empty.

• showProgress (type boolean)

  The export process shows a progress dialog by default.To prevent this from happening, you can set the showProgress property to false.

Hierarchical Data

The sap.ui.export.Spreadsheet library can also handle hierarchical structures.

To get exported, each object of the relevant entity must have the following:

• A distinct property containing its absolute numerical hierarchy level

• An order in which parent nodes are followed by their direct child nodes

To enable a hierarchical representation, you have to simply assign the name of the property containing the hierarchy level to the hierarchyLevel property of the workbook object in the export configuration.

The following code shows you an example of hierarchy data:

var exportConfiguration = {
    workbook: {
        hierarchyLevel: "level"
    }
}

Starting the Export Process

After you have created a valid configuration, you will have to create a new sap.ui.export.Spreadsheet instance and initialize it with the previously created configuration. After the instance has been initialized, you can start the export process by calling the build method. Everything else will be handled by the export library. The result will be an Office Open XML spreadsheet which is automatically downloaded. The export library does not offer you any events to which you can register. If you need to perform additional steps after the export has been completed, you can use the Promise that is returned by the build method.

The following code sample shows the start of an export:

sap.ui.define([
    "sap/ui/core/mvc/Controller",
    "sap/ui/export/Spreadsheet"
], function(Controller, Spreadsheet) {
    "use strict";

    return Controller.extend("sample.Spreadsheet", {

        onExport: function() {
            var oExportConfiguration, oExportPromise, oSpreadsheet;

            /* Creates the configuration and initializes the spreadsheet export */
            oExportConfiguration = this.createExportConfiguration();
            oSpreadsheet= new Spreadsheet(oExportConfiguration);

            /* Starts the export and returns a Promise */
            oExportPromise = oSpreadsheet.build();

            oExportPromise.then(function() {
                // Here you can perform additional steps after the export has finished
            });
        },

        createExportConfiguration: function() {
            var oConfiguration;

            // Create a valid export configuration

            return oConfiguration;
        }
    });
});
