The Diagnostics window available in SAPUI5 is a support tool that runs within an existing SAPUI5 app.

To open Diagnostics, use the following shortcuts: CTRL SHIFT Alt / Option S in the app.

Note

Depending on your app, additional features may be available. Check the sections below for more information.

Technical Information

Technical Information

In this section you can view the technical details of the app and turn on the debug sources. It provides the same features as the Technical Information dialog. Additionally, the Technical Information dialog is available on mobile devices that support multi-touch. For more information, see Technical Information Dialog.

In addition, you can see the following information:

  • The jQuery version that is loaded from the server. If you want to use a specific jQuery feature, you should check whether the feature is supported in the loaded version.

  • The bootstrap configuration, where you can check, for example, the resource root, the theme, or the libraries. The libraries should be listed in the libs configuration parameter or in the descriptor file (recommended), see Manifest (Descriptor for Applications, Components, and Libraries). To improve performance, remove unused libraries and add the libraries that you use and are not yet listed. These libraries are loaded as a preload file. We recommend to also add the async configuration option to the bootstrap. This configuration option enables asynchronous loading of modules and preload files and can, thus, further improve performance. For more information, see Performance: Speed Up Your App.

  • The computed configuration

  • The version of each library that is available and of the libraries that are loaded

  • A list of all loaded modules

  • URI parameters that are set

  • End-to-end (E2E) trace function

    The E2E Trace is used to create an XML file that traces the communication to a different part of your app.

    Start the E2E trace and navigate in the app. Afterwards, a dialog opens indicating that your transaction has finished. Choose OK to continue running the current trace. Choose Cancel to stop the trace and display the result in a new window.

    After stopping the trace, you can view the result and (optionally) upload it to a server by entering a host name and a port number, and then choosing Submit.

Control Tree

Control Tree

The control tree shows all controls that are used in the app. You can select controls either directly in the app by choosing CTRLSHIFTAlt and clicking on the control, or by selecting the control in the control tree.

The following functions are available in the dialog:

  • On the Properties tab, you can change the defined properties of the selected control, and you can add or remove breakpoints. Use the respective checkbox to add or remove a breakpoint for the get and set method of a control property.

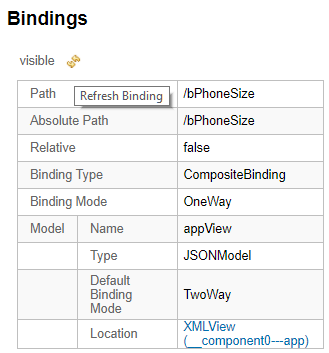

  • The Binding Infos tab shows all existing bindings for the selected control together with additional information. To update the binding, choose Refresh Binding.

    You can also see the binding context for the selected control. To navigate to the respective controls, use the hyperlinks.

  • On the Breakpoints tab, you can add or remove breakpoints for methods on object level. You can either select the method from the dropdown box, or use auto-completion. To set the breakpoint, select the method and choose Add breakpoint. To remove a breakpoint, select the red x.

    For more information, see Breakpoints on the Object Level.

  • Many code samples are written in JavaScript. To facilitate the conversion of these code samples into XML or HTML, SAPUI5 provides a generic conversion tool. To run the tool, proceed as follows:

    1. Select the root UI area in the tree on the left-hand side.

    2. Open the Export tab and choose Export.

    3. Open the ZIP archive and extract the files to your file system.

    If your app does not contain views, the content is put in one view in the output. If your app contains views and all views are loaded, the content is output as separate files.

    Note

    The conversion captures the runtime status of the app. This can differ from the build declaration.

Breakpoints on the Object Level

Breakpoints on the Object Level

In the Control Tree of the Diagnostics window, you can set breakpoints on the object level.

  1. Open the Control Tree view of the Diagnostics window.

  2. Select a control in the tree.

    You can also press and hold CtrlShiftAlt and select a control in your app to select it in the tree.

  3. Select the Breakpoints tab on the right.

  4. From the dropdown list, select the method for which you want to set the breakpoint and choose Add breakpoint.

    The selected methods are listed below the dropdown list.

  5. Open the developer tools of your browser. Whenever the selected methods are called for any instance on the control, the code execution is paused in the debugger.

  6. To remove a breakpoint, select the red x.

Debugging

Debugging

The Diagnostics window provides you with the following features that help you when debugging your app:

  • You can switch the SAPUI5 version you want to debug with.

  • You can set breakpoints for methods on class level.

Switching the SAPUI5 Version

Switching the SAPUI5 Version

Open the Diagnostics window with the shortcut CTRLSHIFTALTS.

At the top of the Debugging view, you can configure a custom URL from which the application should load SAPUI5 the next time that the app opens.

Either select a known SAPUI5 installation from the dropdown box, or enter a different URL that points to the sap-ui-core.js file within a complete SAPUI5 runtime.

Once you have entered the URL, press Activate Reboot URL. When you then reload the application page, the application loads SAPUI5 from the alternative URL. This only happens for the next single reboot; after that, SAPUI5 is loaded again from the standard URL referenced within the app.

This feature can be used to test an application against a newer or older version of SAPUI5 as part of compatibility testing, or for verifying a bug fix or regression.

Breakpoints on the Class Level

Breakpoints on the Class Level

In the Debugging section of the Diagnostics window, you can set breakpoints on the class level.

  1. Open the Debugging view of the Diagnostics window.

  2. Select a class from the dropdown list or enter the name of the class and choose Add Class.

    The selected class is now visible below the dropdown list.

    The number next to the method name shows the number of methods that belong to the class and the number of methods for which a breakpoint is set.

  3. Select the class. On the right side of the view, you can now select methods of the selected class from a dropdown list.

  4. From the dropdown list, select the method for which you want to set the breakpoint and choose Add breakpoint.

    The selected methods are listed below the dropdown list.

  5. Open the developer tools of your browser. Whenever the selected methods are called for any instance of the selected control, the code execution is paused in the debugger.

    In the call stack you find the method for which you set a breakpoint.

  6. To remove a breakpoint, select the red x.

XML View and Templating Support Tools

XML View and Templating Support Tools

This section of Diagnostics shows the code of the loaded XML view exactly as you would see it in your development environment. This way, you can check and test your XML code without the need to switch environments. If your app is connected to a remote service or a back-end system, you can also view the XML metadata.

Before you can use this feature, restart your app in Support Mode (with the sap-ui-support=true URL parameter added to the URL or your app).

XML Metadata

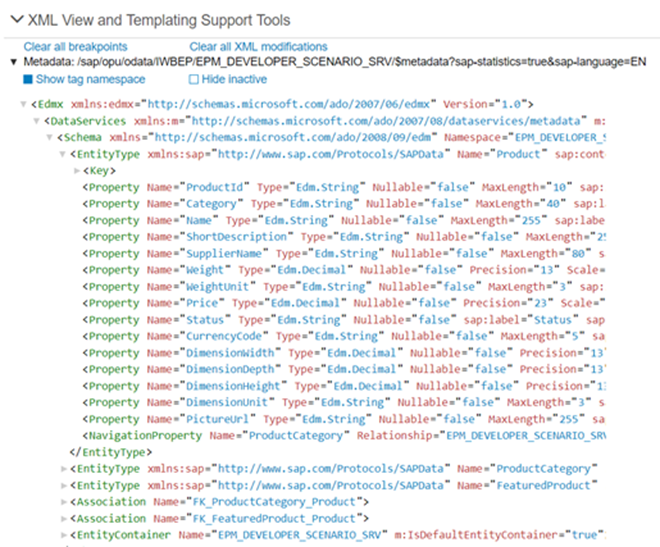

You can display XML metadata by expanding the related nodes in the tree. This helps you to better understand how the data is stored in the back end and which properties it has. This is especially important when investigating binding issues.

XML metadata of a service with three main entity sets: Product, ProductCategory, and FeaturedProduct

XML Code

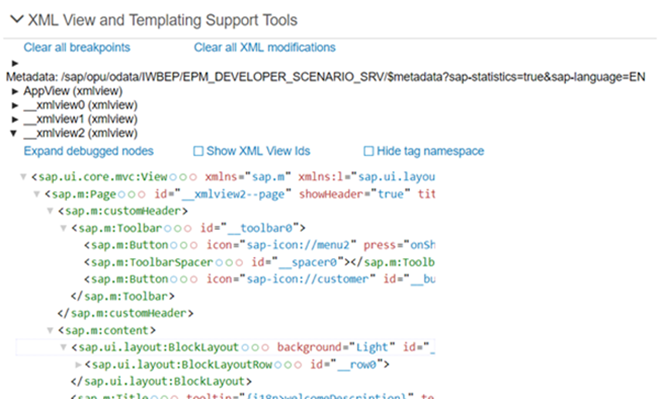

When you expand an XML view in the tree, you can display the XML code.

You can choose the following options for this view:

  • You can choose which kind of IDs you want to see:

    • IDs as they are in the DOM (option Show Real IDs)

    • IDs as they are defined in the XML view (option Show XML View ID)

      If no stable ID is defined in the view, the ID tag is empty (id=" "), if there is an ID, the value is set to true (id="true").

  • You can show or hide the namespaces to improve readability of the code.

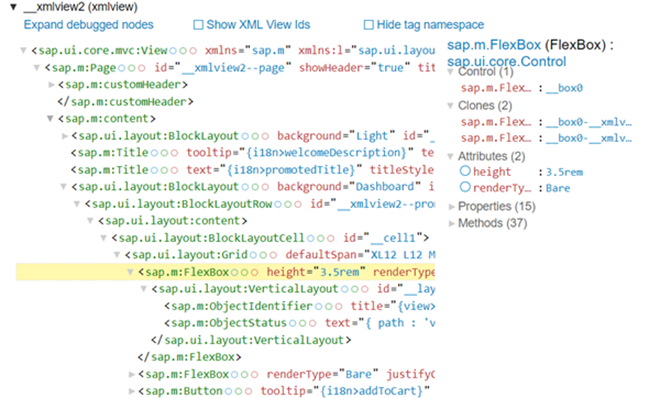

When you select a control in the code, the following information is displayed:

  • Name of the control with a link to the API Reference and its ID in the DOM tree

  • Instances that are cloned in the control with their IDs

  • Attributes and properties of the control with their values

    Similar to the Control Tree section of Diagnostics, you can change those values here for testing purposes.

  • Methods that are available for the control.

Note

When you select, for example, an aggregation, you see the name of the control which has this aggregation or the name of the parent.

Visualizing User Interaction

Visualizing User Interaction

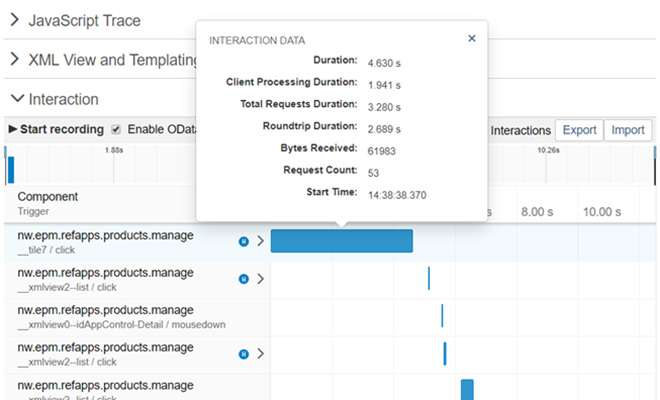

With this feature, you can collect and visualize the performance data collected for the interaction steps in an easy and intuitive way. In addition, you can enable statistics for OData calls that give you information about the app processing time taken by the OData back end.

Activation

You can start the interaction data collection in the following ways:

  • Enable interaction steps recording:

    • To measure the initial loading of the app, add the query string parameter sap-ui-fesr=true at the end of the application URL and reload.

    • To measure the interaction performance, choose Start recording from the Interaction panel and then switch back to the app to do the steps that you want to record. Each user activity, such as clicking buttons or list items or scrolling a list, triggers an interaction. The end of an interaction is when the UI is fully updated by the app. The collected data is displayed once you choose Stop Recording.

  • You can enable the OData statistics by using query string URL parameter sap-statistics=true, or from the UI by selecting Enable OData Statistics.

Output

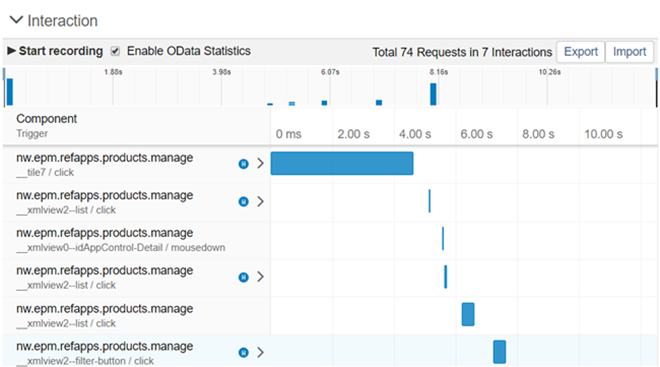

  • Interaction details - Selecting an interaction step bar, opens a dialog with details about the selected interaction: end-to-end duration, total number of requests, the size of the transferred data, and so on.

  • Interaction requests - All interactions contain 0 to N requests, which can be displayed in a list by selecting the expand icon.

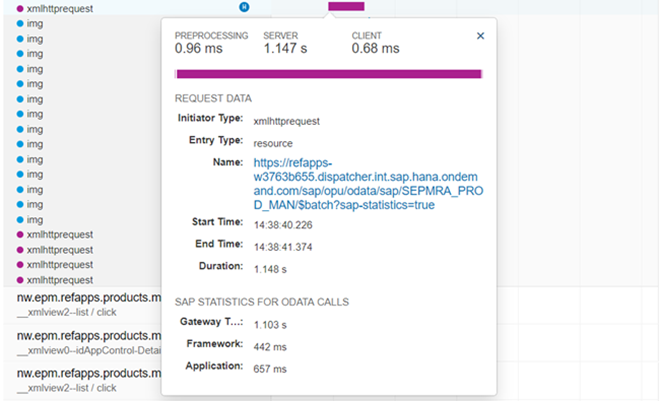

  • Request details - Selecting a request opens a dialog with details, such as request type, URI, overall duration and how it is spread across client, server, and connection establishing processing. When OData statistics are enabled and the request is processed by the SAP NetWeaver OData gateway, in the details dialog there is a section with OData times – Gateway Total, Framework, and Application processing times.

    Note

    The OData time (Gateway Total) is included in the total server time processing. Such requests and their interaction are identified with a blue icon .

Additional features

  • Export - Collected data can be exported as a ZIP archive for easy distribution through e-mail.

  • Import - Already collected data stored as an archive can be visualized again, using the Import function. The input can be either an already exported archive file or directly the JSON file that contains the performance data. This enables remote analysis of app data by another team or expert.

Related information

SAP Fiori Launchpad Configuration

SAP Fiori Launchpad Configuration

This feature is only available when an SAP Fiori launchpad has been loaded. You can quickly view the SAP Fiori launchpad configuration on a specific client.

You can search for parameter names.

The parameters are displayed in a tree structure. You can filter the tree by clicking on the categories that are displayed below the search field. These categories correspond to the first-level entries in the tree.

Note

This tool displays the complete startup configuration, including launchpad configuration parameters that might be deprecated or that might be subject to change. Any changes that occurred after startup are not reflected.

Flexibility

Flexibility

This feature is only available, if the app uses the sap.ui.fl library.

With this feature, you can check whether there are SAPUI5 flexibilty changes for the controls used in an app, and you can analyze these changes.

For example, you can see the layer of the changes in the layered repository, their type, or whether they're active. Active and erroneous changes are only evaluated for the controls currently in the DOM, in the current runtime.

Prerequisites

  • This tab only displays apps that use the sap.ui.fl library.
  • SAPUI5 needs to be in debug mode.

List of Applications

The Flexibility panel displays a list of applications that have been handled by the sap.ui.fl library in this session. In case your application is an app variant, additional information about the base application will be displayed.

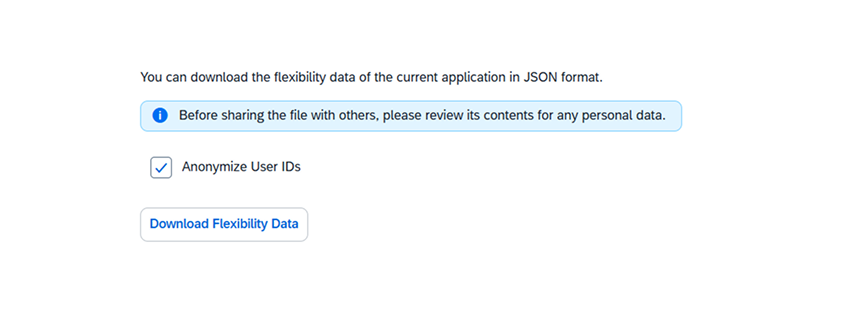

For each app, you can download a JSON file containing the data that has been applied to an application as well as relevant runtime information.

The JSON file contains changes on all layers. Personalization changes that have been saved to the USER layer are only collected for the current user.

You can send this JSON file to SAP support for further investigation, or you can open the UI Flexibility Diagnostics application to investigate yourself.

UI Flexibility Diagnostics Application

In the UI Flexibility Diagnostics application, upload a JSON file that you downloaded from the Flexibility panel in the Diagnostics window.

The UI Flexibility Diagnostics application displays all changes that have been loaded for the application. The arrows visualize dependencies between these changes. You can quickly spot which changes have been applied by checking their color:

Color

Description

Green

This change has been applied to the control in the current system.

Red

The change could not be applied, and an error was raised.

White

There was no attempt to apply the change either because required controls were not present, or because preconditions were not fulfilled.

For more information, see SAPUI5 Flexibility: Adapting UIs Made Easy.

SAP Fiori Elements

SAP Fiori Elements

With this feature, the system helps you collect the data related to issues you encounter when creating an SAP Fiori elements app.

Note

This feature is available only in SAP Fiori elements applications. You can use it only for list report, object page, worklist, and analytical list page applications.

After you have opened the Diagnostics window, perform the following steps:

  1. Choose Copy.

    By default, the system copies plain text to the clipboard. You can also choose to copy HTML.

    The system automatically collects the following relevant data and copies them to your clipboard:

    • Data collected from the application:

      • Used UI5 version and build date

      • Absolute URL to manifest.json of the current application

      • Application component (technical name)

      • Used SAP Fiori elements floorplan

      • Data sources

      • Absolute URL to metadata document

      • Absolute URLs to local and backend annotations

    • Data which is added when copying:

      • Absolute application URL

      • Date and time the data was collected

      • Status of application (for example, loading, rendered, or failed)

      • Error message if the application did not finish loading

  2. Paste the data from your clipboard into a new ticket.

  3. To complete the ticket, under Provide, enter the login credentials for the system, as well as the steps to reproduce the issue.
