Progress Indicator Facet

Progress Indicator Facet

You can add a progress indicator to a header facet on the object page.

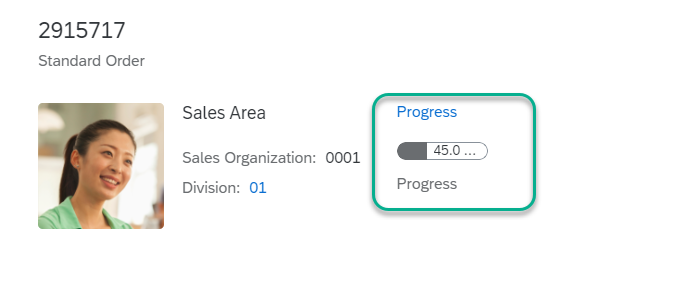

The progress indicator allows you to visually represent the level of completion of a goal or target, such as a project's progress, sales progress for the current year's goal, the development stage of a product, stock availability, and so on. The image below shows a progress indicator within the object page header.

Progress Indicator in Object Page Header

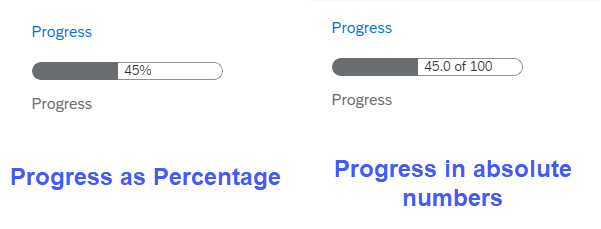

As shown below, progress can be expressed either as a percentage or in absolute numbers (for example, "8 of 10"), and it can include a unit of measure, such as PC or GB.

Progress Indicator: Percent or Number

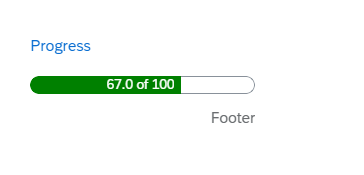

The progress indicator in the header facet is made up of sections to include a title, subtitle, and footer:

Sections of Progress Indicator

Code Samples

UI.ReferenceFacet

To display the progress indicator in the object page header, add a record to the UI.HeaderFacets collection. This record must be of type UI.ReferenceFacet and contain an AnnotationPath that points to a UI.DataPoint with the visualization type Progress. The properties for the data point can be included in either the entityType being annotated (Target) or in another entityType different from the Target, in which case the AnnotationPath contains a navigation path as shown below.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_C_MP_ProjectType">
   <Annotation Term="UI.HeaderFacets">
      <Collection>
         <Record Type="UI.ReferenceFacet">
            <PropertyValue Property="Target"
            AnnotationPath="to_ProgressType/@UI.DataPoint#Progress"/>
         </Record>
      </Collection>
   </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
annotate view STTA_C_MP_PROJECTTYPE with {
@UI.Facet: [
  {
    targetQualifier: 'Progress',
    targetElement: 'TO_PROGRESSTYPE',
    type: #DATAPOINT_REFERENCE,
    purpose: #HEADER
  }
]
test;
}

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ProjectType @(
  UI.HeaderFacets : [
    {
        $Type : 'UI.ReferenceFacet',
        Target : 'to_ProgressType/@UI.DataPoint#Progress',
    }
  ]
);

Note

In the example above, "UI" is an alias for the com.sap.vocabularies.UI.v1 vocabulary.

CDS: UI.DataPoint

In CDS, annotate the EntityType containing the properties required for the data point as shown in the separate sections for SAP Fiori elements for OData V2 and SAP Fiori elements for OData V4, respectively, below.

Note

  • The data point annotation is for a Property, even if the UI vocabulary specifies an EntityType as the Target.

  • The property name will be used as the Qualifier in the resulting (generated) annotation.

The generated annotation will be similar to the example below:

UI.DataPoint

Annotate the entityType containing the properties required for the data point as shown below.

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_C_MP_ProgressType">
   <Annotation Term="UI.DataPoint" Qualifier="Progress">
      <Record>
         <PropertyValue Property="Title" String="{@i18n>Title}"/>
         <PropertyValue Property="Description" String="{@i18n>SubTitle}"/>
         <PropertyValue Property="Value" Path="Progress"/>
         <PropertyValue Property="TargetValue" Decimal="150"/>
         <PropertyValue Property="Criticality" Path="Criticality "/>
         <PropertyValue Property="Visualization" EnumMember="UI.VisualizationType/Progress"/>
      </Record>
   </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
annotate view STTA_C_MP_PROGRESSTYPE with {
@UI.dataPoint: {
  title: '{@i18n>Title}',
  description: '{@i18n>SubTitle}',
  targetValue: 150,
  criticality: 'Criticality ',
  visualization: #PROGRESS
}
progress;
}

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ProgressType @(
UI.DataPoint #Progress : {
    Title : '{@i18n>Title}',
    Description : '{@i18n>SubTitle}',
    Value : Progress,
    TargetValue : 150,
    Criticality : Criticality ,
    Visualization : #Progress
  }
);

UoM and Common.Label

Additionally, for the unit of measure (UoM) and the footer, annotate the property of the entityType so that it includes the path of the Value property for the data point. For example in the code sample above, the path for the data point Value property is Value, which is then used to annotate the entityType. In the examples below, this is represented by <Annotations Target="STTA_PROD_MAN.STTA_C_MP_ProgressType/Value">.

Note that the unit of measure can be annotated with Unit or ISOCurrency as shown below. For the footer, the term Common.Label needs to be applied.

Progress Indicator: UoM.Unit

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_C_MP_ProgressType/Value">
   <Annotation Term="Measures.Unit" Path="UoM"/>
   <Annotation Term="Common.Label" String="{@i18n>Footer}"/>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@Semantics.unitOfMeasure: true
UoM;
@Semantics.quantity.unitOfMeasure: 'UoM'
Value;

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ ProgressType with {
  @Measures.Unit : UoM
  Common.Label : '{@i18n>Footer}'
  Value
};

Progress Indicator: UoM.ISOCurrency

Sample Code

XML Annotation

Sample Code
Hidden
<Annotations Target="STTA_PROD_MAN.STTA_C_MP_ ProgressType/Value">
   <Annotation Term="Measures.ISOCurrency" Path="UoM"/>
   <Annotation Term="Common.Label" Path="Footer/">
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code
Hidden
@Semantics.currencyCode:true
UoM;
@Semantics.amount.currencyCode: 'UoM'
Value;

Sample Code

CAP CDS Annotation

Sample Code
Hidden
annotate STTA_PROD_MAN.STTA_C_MP_ ProgressType with {
    Measures.ISOCurrency : UoM
    @Common.Label : Footer
    Value
};

Rendering Rules

  • The Value and Title properties are mandatory. Without a value, the progress cannot be calculated. You must provide a title for an object page header facet, as this is required by the DataPoint term in the UI vocabulary.

  • The TargetValue property is mandatory when using a UoM that is not expressed as a percentage (for example, currency, CM, or PC), or if no UoM is provided.

  • The remaining properties – Unit of Measure, Subtitle, and Footer – are optional.

  • If the value of the Unit of Measure property is "%", then the Value property will be used directly as a percentage.

  • If the value of the Unit of Measure is not "%" or is not provided, then the progress will be calculated using the Value and TargetValue properties according to the formula Progress = Value / TargetValue.

  • Additionally, the following checks will be done:

    • Division by zero will result in the progress being zero (since it cannot be calculated).

    • If the progress is less than zero, then no color will appear in the progress bar.

    • If the progress is greater than 100, then the progress bar will be fully colored.

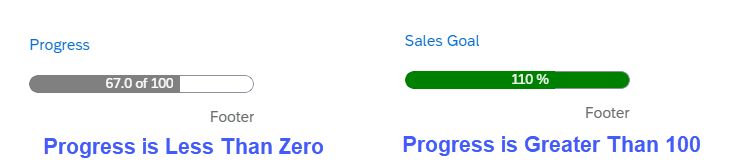

    • In both cases the actual value of the progress will be displayed in the bar as shown in the image below.

      Values in Progress Indicator

Additional Features in SAP Fiori Elements for OData V2

CDS: UI.DataPoint

In ABAP CDS, annotate the EntityType containing the properties required for the data point as shown below.

Hidden
@UI.dataPoint: {
    title:'{@i18n>Title}',
    description: {@i18n>SubTitle},
    targetValue: 150,
    criticality: 'Criticality',
    visualization: #PROGRESS
}
ProjectProgress.Progress

Additional Features in SAP Fiori Elements for OData V4

SAP Cloud Application Programming Model: UI.DataPoint

In CAP CDS, annotate the EntityType containing the properties required for the data point as shown below.

Hidden
@UI: DataPoint #Progress              : {
        Value         : Progress,
        TargetValue   : 100,
        Title         : 'Progress',
        Visualization : #Progress
    }
