Facet Filter List and Facet Filter Item

Facet Filter List and Facet Filter Item

The sap.m.FacetFilter control uses the FacetFilterList and the FacetFilterItem controls to model facets and their associated filters.

The facet filter list aggregation is a collection of facet filter list objects, where each element in the collection represents a different facet. Likewise, the facet filter list items aggregation is a collection of facet filter item objects where each element in the collection represents a different filter items available for the facet.

Facet Filter List

The FacetFilterList control extends and supports all the features of the sap.m.List control, for example swipe for action, growing feature, remember selections and grouping.

The following properties of FacetFilterList affect the display of lists in the FacetFilter control.

Property Description
title Facet name
mode

Controls the selection mode for the list

This property is overridden from ListBase and only allows SingleSelectMaster or MultiSelect settings. MultiSelect is the default: This setting displays the All checkbox above the filter list to allow the user to select all filters. This does not actually select individual filters to avoid performance overhead for lists with a large number of items.
sequence

Controls the order in which the facets are displayed in the toolbar

Lists appear in the toolbar in ascending order according to sequence (assuming left to right). Lists with a sequence less than 0 are placed last, not before facets with sequence of zero. Only active lists are displayed regardless of sequence setting.

active Indicates if a facet filter list is active and should appear on the toolbar; this is only applicable for the simple type as all facet filter lists are active in the light type
allCount The allCount value can be set to the number of filter matches in the target data set given the currently selected filters for the facet filter list.
Note

The list of properties is not complete. For a complete list, refer to the API documentation.

Facet Filter Item

The FacetFilterItem control extends and supports all features of sap.m.ListItemBase, for example item selection and counter. FacetFilterItem provides the following properties:

Property Description
text Filter item name
key

Unique identifier of the filter item; used to filter the target data set

If key is not set, text is used as the key value.
Note

You must either set the text or the key property. Otherwise, the facet filter list can not properly maintain the selected state of the item and an error message is logged to the console.

Example

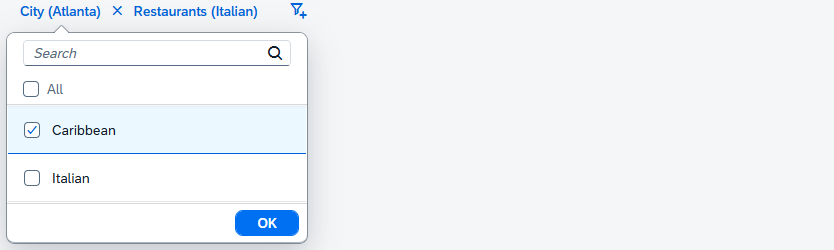

The following example shows how you use the controls. To build the face filter in the figure, use the code below the figure:

Hidden

sap.ui.require([
			"sap/m/FacetFilter",
			"sap/m/FacetFilterList",
			"sap/m/FacetFilterItem"
		], function (FacetFilter, FacetFilterList, FacetFilterItem) {

			const oFacetFilter = new FacetFilter({ // define FacetFilter Control
			lists : [
					new FacetFilterList({ // city facet
						title : "City",
						items : [
							new FacetFilterItem({
								text : "Waldorf",
								key : "WDF"
							}),
							new FacetFilterItem({
								selected : true, // filter is selected (from ListItemBase)
								text : "Atlanta",
								key : "ATL"
							})
						]
					}),
					new FacetFilterList({ // restaurant facet
						title : "Restaurants",
						items : [
							new FacetFilterItem({
								text : "Caribbean",
								key : "CRB"
							}),
							new FacetFilterItem({
								selected : true, // filter is selected (from ListItemBase)
								text : "Italian",
								key : "ITL"
							})
						]
					})
				]
			});
		});
Note

The example does not have a model binding. A binding to the filter items is required for the search.
