Table Cards

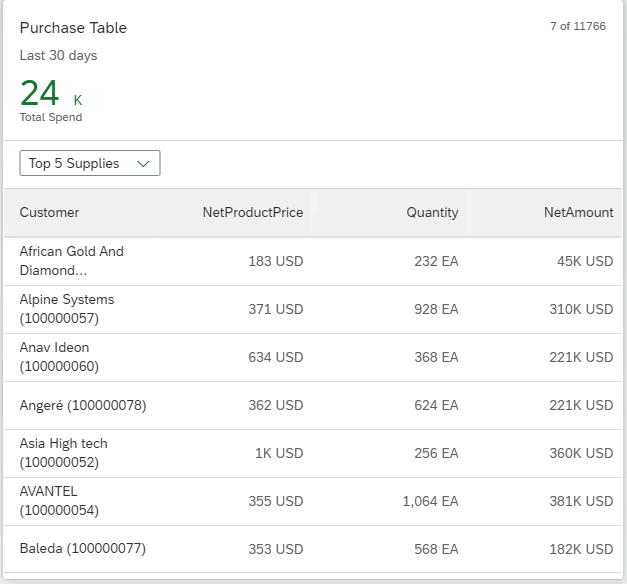

A table card displays a list of records in a 3-column table layout.

To create a table card, you need these annotations:

Note

(Optional) You can configure smart links in table cards to access quick links.

Hover over each action for a description. Click the action for more information.

Descriptor Settings: Title

Property: title

Description: Configuring this property displays the card title at the top of the table card.

Sample Code

"sap.ovp": {
    "globalFilterModel": "salesOrder",
    "globalFilterEntityType": "GlobalFilters", // Deprecated since SAPUI5 1.54.
    "globalFilterEntitySet": "GlobalFilters",  // Available from SAPUI5 1.54.
    ...
    "cards": {
        "card014": {
            "model": "salesOrder",
            "template": "sap.ovp.cards.table",
            "settings": {
                "title": "Purchase Forecast",
                "entitySet": "SalesShare",
                ...
            }
        }
    }
}

Descriptor Settings: Subtitle

Property: subTitle

Description: Configuring this property displays the card subtitle below the title of the table card.

Sample Code

"sap.ovp": {
    "globalFilterModel": "salesOrder",
    "globalFilterEntityType": "GlobalFilters", // Deprecated since SAPUI5 1.54.
    "globalFilterEntitySet": "GlobalFilters",  // Available from SAPUI5 1.54.
    ...
    "cards": {
        "card014": {
            "model": "salesOrder",
            "template": "sap.ovp.cards.table",
            "settings": {
                "title": "Sales Forecast",
                "subTitle": "per Supplier",
                "entitySet": "SalesShare",
                ...
            }
        }
    }
}

You can display the unit of measure next to numeric values by providing the sap:unit attribute in the OData metadata file or by annotating the unit in the annotation document. For example, if you have the following data, and want to display 850 kg after the subtitle text

{
    "CurrencyCode": "KG",
    "GrossAmount": 850
}

Use one of the following options:

Option 1: Define sap:unit in the metadata

<Property
    Name="CurrencyCode"
    Type="Edm.String"
    MaxLength="5"
    sap:label="Currency"
    sap:updatable="false"
    sap:semantics="currency-code"
/>
<Property
    Name="GrossAmount"
    Type="Edm.Decimal"
    Precision="16"
    Scale="3"
    sap:unit="CurrencyCode"
    sap:label="Gross Amt."
    sap:creatable="false"
    sap:updatable="false"
/>

Option 2: Define Org.OData.Measures.V1.ISOCurrency in annotations

<Annotations Target="GWSAMPLE_BASIC.SalesOrder/GrossAmount">
    <Annotation Term="Org.OData.Measures.V1.ISOCurrency" Path="CurrencyCode"/>
</Annotations>

KPI annotation

Descriptor Settings

"sap.ovp": {
    // section for ovp-specific app descriptor settings
    ...
    "kpiAnnotationPath": "com.sap.vocabularies.UI.v1.KPI#AllActualCosts", // Represents the KPI annotation path
    ...
}

Annotation Samples

Sample Code

XML Annotation

Sample Code

<Annotation Term="UI.KPI" Qualifier="Eval_by_Country-Generic">
    <Record>
        <PropertyValue Property="DataPoint" Path="@UI.DataPoint#Eval_by_Country-Generic"/>
        <PropertyValue Property="Detail">
            <Record Type="UI.KPIDetailType">
                <PropertyValue Property="DefaultPresentationVariant" Path="@UI.PresentationVariant#Eval_by_Currency1"/>
                <PropertyValue Property="AlternativePresentationVariants">
                    <Collection>
                        <Path>@UI.PresentationVariant#Eval_by_Currency_Column</Path>
                    </Collection>
                </PropertyValue>
                <PropertyValue String="Action" Property="SemanticObject"/>
                <PropertyValue String="toappnavsample" Property="Action"/>
            </Record>
        </PropertyValue>
        <PropertyValue String="String for KPI Annotation" Property="ID"/>
        <PropertyValue Property="SelectionVariantQualifier" Path="@UI.SelectionVariant#Eval_by_Currency_1"/>
    </Record>
</Annotation>

<Annotation Term="UI.DataPoint" Qualifier="Eval_by_Country_Generic">
    <Record>
        <PropertyValue Property="Value" Path="Currency"/>
        <PropertyValue String="test" Property="Title"/>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.KPI: [
    {
        detail: {
            defaultPresentationVariantQualifier: 'Eval_by_Currency1',
            alternativePresentationVariantQualifiers: [
                'Eval_by_Currency_Column'
            ],
            semanticObject: 'Action',
            semanticObjectAction: 'toappnavsample'
        },
        selectionVariantQualifier: 'Eval_by_Currency_1',
        id: 'String for KPI Annotation',
        qualifier: 'Eval_by_Country-Generic',
        dataPoint: {
            title: 'test'
        }
    }
]

Sample Code

CAP CDS Annotation

Sample Code

UI.KPI #AllActualCosts: {
    $Type: 'UI.KPIType',
    Detail: {
        $Type: 'UI.KPIDetailType',
        DefaultPresentationVariant: ![@UI.PresentationVariant#Eval_by_Currency1],
        AlternativePresentationVariants: [
            ![@UI.PresentationVariant#Eval_by_Currency_Column]
        ],
        SemanticObject: 'Action',
        Action: 'toappnavsample'
    },
    SelectionVariant: ![@UI.SelectionVariant#Eval_by_Currency_1],
    DataPoint: ![@UI.DataPoint#Eval_by_Country-Generic],
    ID: 'String for KPI Annotation'
}

PresentationVariant annotation

Sample Code

XML Annotation

Sample Code

<Annotation Term="UI.PresentationVariant" Qualifier="Eval_by_Currency1">
    <Record>
        <PropertyValue Property="MaxItems" Int="5"/>
        <PropertyValue Property="GroupBy">
            <Collection>
                <PropertyPath>Country</PropertyPath>
                <PropertyPath>Currency</PropertyPath>
            </Collection>
        </PropertyValue>
        <PropertyValue Property="SortOrder">
            <Collection>
                <Record>
                    <PropertyValue Property="Property" PropertyPath="TotalSales"/>
                    <PropertyValue Property="Descending" Bool="true"/>
                </Record>
            </Collection>
        </PropertyValue>
        <PropertyValue Property="Visualizations">
            <Collection>
                <AnnotationPath>@UI.Chart#Eval_by_Currency_Donut</AnnotationPath>
            </Collection>
        </PropertyValue>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.PresentationVariant: [
    {
        maxItems: 5,
        groupBy: [
            'COUNTRY',
            'CURRENCY'
        ],
        sortOrder: [
            {
                by: 'TOTALSALES'
            }
        ],
        visualizations: [
            {
                type: '#AS_CHART',
                qualifier: 'Eval_by_Currency_Donut'
            }
        ],
        qualifier: 'Eval_by_Currency1'
    }
]

// Annotation for VIEWNAME
annotate view VIEWNAME with {}

Sample Code

CAP CDS Annotation

Sample Code

UI.PresentationVariant #Eval_by_Currency1: {
    MaxItems: 5,
    GroupBy: [
        "Country",
        "Currency"
    ],
    SortOrder: [
        {
            Property: "TotalSales",
            Descending: true
        }
    ],
    Visualizations: [
        "@UI.Chart#Eval_by_Currency_Donut"
    ]
}

SelectionVariant annotation

Sample Code

XML Annotation

Sample Code

<Annotation Term="UI.SelectionVariant" Qualifier="Eval_by_Currency_1">
    <Record>
        <PropertyValue Property="SelectOptions">
            <Collection>
                <Record>
                    <PropertyValue Property="PropertyName" PropertyPath="Country"/>
                    <PropertyValue Property="Ranges">
                        <Collection>
                            <Record>
                                <PropertyValue Property="Sign" EnumMember="UI.SelectionRangeSignType/I"/>
                                <PropertyValue Property="Option" EnumMember="UI.SelectionRangeOptionType/EQ"/>
                                <PropertyValue Property="Low" String="IN"/>
                            </Record>
                        </Collection>
                    </PropertyValue>
                </Record>
            </Collection>
        </PropertyValue>
        <PropertyValue Property="Parameters">
            <Collection>
                <Record Type="UI.Parameter">
                    <PropertyValue Property="PropertyName" PropertyPath="Currency_Target"/>
                    <PropertyValue Property="PropertyValue" String="EUR"/>
                </Record>
                <Record Type="UI.Parameter">
                    <PropertyValue Property="PropertyName" PropertyPath="UoM_Target"/>
                    <PropertyValue Property="PropertyValue" String="KGM"/>
                </Record>
            </Collection>
        </PropertyValue>
    </Record>
</Annotation>

Sample Code

CAP CDS Annotation

Sample Code

UI.SelectionVariant #Eval_by_Currency_1: {
    SelectOptions: [
        {
            PropertyName: "Country",
            Ranges: [
                {
                    Sign: "#I",
                    Option: "#EQ",
                    Low: "IN"
                }
            ]
        }
    ],
    Parameters: [
        {
            $Type: "UI.Parameter",
            PropertyName: "Currency_Target",
            PropertyValue: "EUR"
        },
        {
            $Type: "UI.Parameter",
            PropertyName: "UoM_Target",
            PropertyValue: "KGM"
        }
    ]
}

DataPoint annotation

Sample Code

XML Annotation

Sample Code

<Annotation Term="UI.DataPoint" Qualifier="Eval_by_Country_Generic">
    <Record Type="UI.DataPointType">
        <PropertyValue Property="Title" String="Sales India - Generic Card" />
        <PropertyValue Property="Value" Path="Sales" />
        <PropertyValue Property="ValueFormat">
            <Record>
                <PropertyValue Property="ScaleFactor" Decimal="2" />
                <PropertyValue Property="NumberOfFractionalDigits" Int="1" />
            </Record>
        </PropertyValue>
        <PropertyValue Property="CriticalityCalculation">
            <Record>
                <PropertyValue Property="ImprovementDirection" EnumMember="UI.ImprovementDirectionType/Minimize" />
                <PropertyValue Property="DeviationRangeHighValue" String="7300" />
                <PropertyValue Property="ToleranceRangeHighValue" String="7200" />
            </Record>
        </PropertyValue>
        <PropertyValue Property="TargetValue" String="2.000" />
        <PropertyValue Property="TrendCalculation">
            <Record>
                <PropertyValue Property="ReferenceValue" String="5201680" />
                <PropertyValue Property="DownDifference" Decimal="10000000.0" />
            </Record>
        </PropertyValue>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.dataPoint: {
    title: "Sales India - Generic Card",
    valueFormat: {
        scaleFactor: 2,
        numberOfFractionalDigits: 1
    },
    criticalityCalculation: {
        improvementDirection: "#MINIMIZE",
        deviationRangeHighValue: 7300,
        toleranceRangeHighValue: 7200
    },
    targetValue: 2.000,
    trendCalculation: {
        referenceValue: "refValElement",
        downDifference: 10000000.0
    }
} Sales;

Sample Code

CAP CDS Annotation

Sample Code

UI.DataPoint #Eval_by_Country-Generic: {
    $Type: "UI.DataPointType",
    Title: "Sales India - Generic Card",
    Value: "Sales",
    ValueFormat: {
        ScaleFactor: 2,
        NumberOfFractionalDigits: 1
    },
    CriticalityCalculation: {
        ImprovementDirection: "#Minimizing",
        DeviationRangeHighValue: "7300",
        ToleranceRangeHighValue: "7200"
    },
    TargetValue: "2.000",
    TrendCalculation: {
        ReferenceValue: "5201680",
        DownDifference: 10000000.0
    }
}

Configuring View Switch

Property: valueSelectionInfo

Description: Configuring this property allows you to define a dropdown list to filter/view data at the card level.

Sample Code

Descriptor Settings

"sap.ovp": {
    "globalFilterModel": "salesOrder",
    "globalFilterEntityType": "GlobalFilters", //Deprecated since SAPUI5 1.54.
    "globalFilterEntitySet": "GlobalFilters", //Available from SAPUI5 1.54.
    "showDateInRelativeFormat": false,
    "disableTableCardFlexibility": false,
    "considerAnalyticalParameters": true,
    "useDateRangeType": false,
    "cards": {
        "card014": {
            "model": "salesOrder",
            "template": "sap.ovp.cards.table",
            "settings": {
                "title": "Sales Forecast",
                "subTitle": "per Supplier",
                "valueSelectionInfo": "Value Selection Info",
                "entitySet": "SalesShare",
                "tabs": [
                    {
                        "dynamicSubtitleAnnotationPath": "com.sap.vocabularies.UI.v1.HeaderInfo#dynamicSubtitle",
                        "annotationPath": "com.sap.vocabularies.UI.v1.LineItem#View1",
                        "selectionAnnotationPath": "com.sap.vocabularies.UI.v1.SelectionVariant#line1",
                        "presentationAnnotationPath": "com.sap.vocabularies.UI.v1.PresentationVariant#line",
                        "identificationAnnotationPath": "com.sap.vocabularies.UI.v1.Identification",
                        "dataPointAnnotationPath": "com.sap.vocabularies.UI.v1.DataPoint#line",
                        "value": "{{dropdown_value2}}"
                    },
                    {
                        "dynamicSubtitleAnnotationPath": "com.sap.vocabularies.UI.v1.HeaderInfo#dynamicSubtitle",
                        "annotationPath": "com.sap.vocabularies.UI.v1.LineItem#View4",
                        "identificationAnnotationPath": "com.sap.vocabularies.UI.v1.Identification#item2",
                        "dataPointAnnotationPath": "com.sap.vocabularies.UI.v1.DataPoint#line",
                        "value": "{{dropdown_value4}}"
                    }
                ]
            }
        }
    }
}

Configuring the Table Area

Annotation: LineItem

Description: Configuring this annotation displays the table header title (Label property) and the corresponding values (Value property) for the row items.

Sample Code

Descriptor Settings

"sap.ovp": {
    "globalFilterModel": "salesOrder",
    "globalFilterEntityType": "GlobalFilters", //Deprecated since SAPUI5 1.54.
    "globalFilterEntitySet": "GlobalFilters", //Available from SAPUI5 1.54.
    "showDateInRelativeFormat": false,
    "disableTableCardFlexibility": false,
    "considerAnalyticalParameters": true,
    "useDateRangeType": false,
    "cards": {
        "card014": {
            "model": "salesOrder",
            "template": "sap.ovp.cards.table",
            "settings": {
                "title": "Sales Forecast",
                "subTitle": "per Supplier",
                "valueSelectionInfo": "Value Selection Info",
                "entitySet": "SalesShare",
                "tabs": [
                    {
                        "dynamicSubtitleAnnotationPath": "com.sap.vocabularies.UI.v1.HeaderInfo#dynamicSubtitle",
                        "annotationPath": "com.sap.vocabularies.UI.v1.LineItem#View1",
                        "selectionAnnotationPath": "com.sap.vocabularies.UI.v1.SelectionVariant#line1",
                        "presentationAnnotationPath": "com.sap.vocabularies.UI.v1.PresentationVariant#line",
                        "identificationAnnotationPath": "com.sap.vocabularies.UI.v1.Identification",
                        "dataPointAnnotationPath": "com.sap.vocabularies.UI.v1.DataPoint#line",
                        "value": "{{dropdown_value2}}"
                    },
                    {
                        "dynamicSubtitleAnnotationPath": "com.sap.vocabularies.UI.v1.HeaderInfo#dynamicSubtitle",
                        "annotationPath": "com.sap.vocabularies.UI.v1.LineItem#View4",
                        "identificationAnnotationPath": "com.sap.vocabularies.UI.v1.Identification#item2",
                        "dataPointAnnotationPath": "com.sap.vocabularies.UI.v1.DataPoint#line",
                        "value": "{{dropdown_value4}}"
                    }
                ]
            }
        }
    }
}

Annotation Sample for LineItem#View4

Sample Code

XML Annotation

Sample Code

<Annotation Term="com.sap.vocabularies.UI.v1.LineItem" Qualifier="View4">
    <Collection>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Order ID"/>
            <PropertyValue Property="Value" Path="SalesOrderID"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Customer"/>
            <PropertyValue Property="Value" Path="ToBusinessPartner/EmailAddress"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Customer"/>
            <PropertyValue Property="Value" Path="CustomerName"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataFieldForAnnotation">
            <PropertyValue Property="Label" String="TaxAmount"/>
            <PropertyValue Property="Target" AnnotationPath="@com.sap.vocabularies.UI.v1.DataPoint#TaxAmount"/>
        </Record>
    </Collection>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.lineItem: [
    {
        label: "Order ID",
        position: 10,
        qualifier: "View4"
    }
] SALESORDERID;

@UI.lineItem: [
    {
        label: "Customer",
        value: "_BUSINESSPARTNER.EMAILADDRESS",
        position: 20,
        qualifier: "View4"
    }
] _BUSINESSPARTNER;

@UI.lineItem: [
    {
        label: "Customer",
        position: 30,
        qualifier: "View4"
    }
] CUSTOMERNAME;

@UI.lineItem: [
    {
        label: "TaxAmount",
        valueQualifier: "TaxAmount",
        type: "#AS_DATAPOINT",
        position: 40,
        qualifier: "View4"
    }
] PROPERTY_NAME;

Sample Code

CAP CDS Annotation

Sample Code

UI.LineItem #View4: [
    {
        $Type: "UI.DataField",
        Label: "Order ID",
        Value: "SalesOrderID"
    },
    {
        $Type: "UI.DataField",
        Label: "Customer",
        Value: "ToBusinessPartner.EmailAddress"
    },
    {
        $Type: "UI.DataField",
        Label: "Customer",
        Value: "CustomerName"
    },
    {
        $Type: "UI.DataFieldForAnnotation",
        Label: "TaxAmount",
        Target: "@UI.DataPoint#TaxAmount"
    }
]

Annotation Sample for DataPoint#TaxAmount

Sample Code

XML Annotation

Sample Code

<Annotation Term="com.sap.vocabularies.UI.v1.DataPoint" Qualifier="TaxAmount">
    <Record Type="com.sap.vocabularies.UI.v1.DataPointType">
        <PropertyValue Property="Title" String="TaxAmount"/>
        <PropertyValue Property="Value" Path="TaxAmount"/>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.dataPoint: {
    title: "TaxAmount"
} TaxAmount;

Sample Code

CAP CDS Annotation

Sample Code

UI.DataPoint #TaxAmount: {
    $Type: "UI.DataPointType",
    Title: "TaxAmount",
    Value: "TaxAmount"
}

The com.sap.vocabularies.UI.v1.LineItem term can be configured in the application manifest file by setting the annotationPath property with a qualifier, as shown in the example below. If the annotationPath property is not configured, the com.sap.vocabularies.UI.v1.LineItem term, without a qualifier, is used.

Sample Code

"sap.ovp": {
    ...
    "disableTableCardFlexibility": false,
    ...
    "card02": {
        "model": "salesOrder",
        "template": "sap.ovp.cards.table",
        "settings": {
            "title": "Sales Orders With Analytical Header",
            "subTitle": "Sales Orders With Analytical Header",
            "listFlavor": "bar",
            "listType": "extended",
            "entitySet": "SalesOrderSet",
            "dataPointAnnotationPath": "com.sap.vocabularies.UI.v1.DataPoint#line_without_trend",
            "selectionAnnotationPath": "com.sap.vocabularies.UI.v1.SelectionVariant#line1",
            "annotationPath": "com.sap.vocabularies.UI.v1.LineItem#View1",
            "presentationAnnotationPath": "com.sap.vocabularies.UI.v1.PresentationVariant#line"
        }
    },
    ...
}

Note

In SAP Fiori elements for OData V4, add sap.ovp.cards.v4.table as the template. All other manifest settings are the same as in SAP Fiori elements for OData V2.

You can use different com.sap.vocabularies.UI.v1.LineItem annotations for different card instances of the same entity type by using different qualifiers and setting the annotationPath property with the qualifier in the card configuration. For example com.sap.vocabularies.UI.v1.LineItem#Qualifier1.

If you set "disableTableCardFlexibility": true, then at runtime, DataField records are sorted according to importance set in the com.sap.vocabularies.UI.v1.ImportanceType annotation, and their order of entry. The first two DataField records are displayed in the first two columns of the table. If there is a DataFieldForAnnotation record that has a DataPoint target, it is used for the third column and its value is highlighted according to the criticality of the DataPoint. If no DataFieldForAnnotation is defined, the next DataField record is displayed in the third column.

If you set "disableTableCardFlexibility": false, then at runtime, table columns are sorted according to the importance set in the com.sap.vocabularies.UI.v1.ImportanceType annotation, and their order of entry.

Note

If a DataField record points to a path that exists in a DataPoint target, it is skipped so that the property is not displayed more than once in the same table.

Example

In this example, the first column in the table displays Product Name, the second column displays Supplier, and the third column displays Weight Measure (according to the DataPoint target).

Sample Code

XML Annotation

Sample Code

<Annotation Term="com.sap.vocabularies.UI.v1.DataPoint" Qualifier="WeightMeasure">
    <Record Type="com.sap.vocabularies.UI.v1.DataPointType">
        <PropertyValue Property="Title" String="Weight"/>
        <PropertyValue Property="Description" Path="Name"/>
        <PropertyValue Property="Value" Path="WeightMeasure"/>
        <PropertyValue Property="CriticalityCalculation">
            <Record Type="com.sap.vocabularies.UI.v1.CriticalityCalculationType">
                <PropertyValue Property="ImprovementDirection" EnumMember="com.sap.vocabularies.UI.v1.CriticalityCalculationType/Maximize"/>
                <PropertyValue Property="ToleranceRangeLowValue" Int="2"/>
                <PropertyValue Property="DeviationRangeLowValue" Int="4"/>
            </Record>
        </PropertyValue>
    </Record>
</Annotation>

<Annotation Term="com.sap.vocabularies.UI.v1.LineItem">
    <Collection>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Product ID"/>
            <PropertyValue Property="Value" Path="ProductID"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Category"/>
            <PropertyValue Property="Value" Path="Category"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Product Name"/>
            <PropertyValue Property="Value" Path="Name"/>
            <Annotation Term="com.sap.vocabularies.UI.v1.Importance" EnumMember="com.sap.vocabularies.UI.v1.ImportanceType/High"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Supplier"/>
            <PropertyValue Property="Value" Path="SupplierName"/>
            <Annotation Term="com.sap.vocabularies.UI.v1.Importance" EnumMember="com.sap.vocabularies.UI.v1.ImportanceType/High"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Unit Price"/>
            <PropertyValue Property="Value" Path="Price"/>
            <Annotation Term="com.sap.vocabularies.UI.v1.Importance" EnumMember="com.sap.vocabularies.UI.v1.ImportanceType/High"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataFieldForAnnotation">
            <PropertyValue Property="Label" String="Weight Measure"/>
            <PropertyValue Property="Target" AnnotationPath="@com.sap.vocabularies.UI.v1.DataPoint#WeightMeasure"/>
        </Record>
    </Collection>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.dataPoint: {
    title: "Weight",
    description: "Name",
    valueFormat: {
        scaleFactor: 2,
        numberOfFractionalDigits: 1
    },
    criticalityCalculation: {
        improvementDirection: "#MAXIMIZE",
        deviationRangeHighValue: 4.3,
        toleranceRangeHighValue: 2.5
    }
} WeightMeasure;

@UI.lineItem: [
    {
        label: "Product ID",
        position: 10
    }
] PRODUCTID;

@UI.lineItem: [
    {
        label: "Category",
        position: 20
    }
] CATEGORY;

@UI.lineItem: [
    {
        importance: "#HIGH",
        label: "Product Name",
        position: 30
    }
] NAME;

@UI.lineItem: [
    {
        importance: "#HIGH",
        label: "Supplier",
        position: 40
    }
] SUPPLIERNAME;

@UI.lineItem: [
    {
        importance: "#HIGH",
        label: "Unit Price",
        position: 50
    }
] PRICE;

@UI.lineItem: [
    {
        label: "Weight Measure",
        valueQualifier: "WeightMeasure",
        type: "#AS_DATAPOINT",
        position: 60
    }
] PROPERTY_NAME;

Sample Code

CAP CDS Annotation

Sample Code

UI.DataPoint #WeightMeasure: {
    $Type: "UI.DataPointType",
    Title: "Weight",
    Description: "Name",
    Value: "WeightMeasure",
    CriticalityCalculation: {
        $Type: "UI.CriticalityCalculationType",
        ImprovementDirection: "#Maximize",
        ToleranceRangeLowValue: 2.5,
        DeviationRangeLowValue: 4.3
    }
},

UI.LineItem: [
    {
        $Type: "UI.DataField",
        Label: "Product ID",
        Value: "ProductID"
    },
    {
        $Type: "UI.DataField",
        Label: "Category",
        Value: "Category"
    },
    {
        $Type: "UI.DataField",
        Label: "Product Name",
        Value: "Name",
        "![@UI.Importance]": "#High"
    },
    {
        $Type: "UI.DataField",
        Label: "Supplier",
        Value: "SupplierName",
        "![@UI.Importance]": "#High"
    },
    {
        $Type: "UI.DataField",
        Label: "Unit Price",
        Value: "Price",
        "![@UI.Importance]": "#High"
    },
    {
        $Type: "UI.DataFieldForAnnotation",
        Label: "Weight Measure",
        Target: "@UI.DataPoint#WeightMeasure"
    }
]

Smart Links

Define a semantic object for the entity set and its property using the annotation target to enable smart links in a table card. For example:

Sample Code

XML Annotation

Sample Code

<Annotations Target="GWSAMPLE_BASIC.SalesOrder/SalesOrderID">
    <Annotation Term="com.sap.vocabularies.Common.v1.SemanticObject" String="OVP"/>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code

annotate view SALESORDER with {
    @Consumption.semanticObject: 'OVP'
    salesorderid;
}

Sample Code

CAP CDS Annotation

Sample Code

annotate GWSAMPLE_BASIC.SalesOrder with {
    @Common.SemanticObject: 'OVP'
    SalesOrderID;
}

Table cards also let you view contact information if you have defined the com.sap.vocabularies.Communication.v1.Contact annotation.

Sample Code

XML Annotation

Sample Code

<Annotation Term="com.sap.vocabularies.UI.v1.LineItem" Qualifier="NewSalesOrders">
    <Collection>
        <Record Type="com.sap.vocabularies.UI.v1.DataField">
            <PropertyValue Property="Label" String="Order ID (Company)"/>
            <PropertyValue Property="Value" Path="SalesOrderID"/>
        </Record>
        <Record Type="com.sap.vocabularies.UI.v1.DataFieldForAnnotation">
            <PropertyValue Property="Label" String="Created by (Role)" />
            <PropertyValue Property="Target" AnnotationPath="ToBusinessPartner/@com.sap.vocabularies.Communication.v1.Contact" />
        </Record>
    </Collection>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

@UI.lineItem: [
    {
        label: "Order ID (Company)",
        position: 10,
        qualifier: "NewSalesOrders"
    }
] SALESORDERID;

@UI.lineItem: [
    {
        label: "Created by (Role)",
        value: "_BUSINESSPARTNER",
        type: "#AS_CONTACT",
        position: 20,
        qualifier: "NewSalesOrders"
    }
] PROPERT_NAME;

Sample Code

CAP CDS Annotation

Sample Code

UI.LineItem #NewSalesOrders: [
    {
        $Type: "UI.DataField",
        Label: "Order ID (Company)",
        Value: "SalesOrderID"
    },
    {
        $Type: "UI.DataFieldForAnnotation",
        Label: "Created by (Role)",
        Target: "ToBusinessPartner/@Communication.Contact"
    }
]

Sample Code

XML Annotation

Sample Code

<Annotation Term="com.sap.vocabularies.Communication.v1.Contact">
    <Record>
        <PropertyValue Property="tel">
            <Collection>
                <Record>
                    <PropertyValue Property="type" EnumMember="com.sap.vocabularies.Communication.v1.PhoneType/fax"/>
                    <PropertyValue Property="uri" Path="FaxNumber"/>
                </Record>
                <Record>
                    <PropertyValue Property="type" EnumMember="com.sap.vocabularies.Communication.v1.PhoneType/work com.sap.vocabularies.Communication.v1.PhoneType/preferred"/>
                    <PropertyValue Property="uri" Path="PhoneNumber"/>
                </Record>
            </Collection>
        </PropertyValue>
        <PropertyValue Property="email">
            <Collection>
                <Record>
                    <PropertyValue Property="type" EnumMember="com.sap.vocabularies.Communication.v1.ContactInformationType/preferred com.sap.vocabularies.Communication.v1.ContactInformationType/work"/>
                    <PropertyValue Property="address" Path="EmailAddress"/>
                </Record>
            </Collection>
        </PropertyValue>
    </Record>
</Annotation>

Sample Code

ABAP CDS Annotation

Sample Code

define view VIEWNAME {
    @Semantics.name.fullName: true
    CompanyName,

    @Semantics.eMail.address: true
    @Semantics.eMail.type: [#WORK]
    EmailAddress,

    @Semantics.telephone.type: [#FAX]
    FaxNumber,

    @Semantics.telephone.type: [#WORK]
    PhoneNumber
}

Sample Code

CAP CDS Annotation

Sample Code

Communication.Contact: {
    tel: [
        {
            type: "#fax",
            uri: "FaxNumber"
        },
        {
            type: ["#work", "#pref"],
            uri: "PhoneNumber"
        }
    ],
    email: [
        {
            type: ["#pref", "#work"],
            address: "EmailAddress"
        }
    ]
}

Text Arrangement

The text arrangement annotation lets you to define the format of texts.

Sample Code

XML Annotation

Sample Code

<Annotations xmlns="http://docs.oasis-open.org/odata/ns/edm" Target="GWSAMPLE_BASIC.SalesOrder/CustomerID">
    <Annotation Term="com.sap.vocabularies.Common.v1.Text" Path="Supplier_Name">
        <Annotation Term="com.sap.vocabularies.UI.v1.TextArrangement" EnumMember="com.sap.vocabularies.UI.v1.TextArrangementType/TextLast"/>
    </Annotation>
</Annotations>

Sample Code

ABAP CDS Annotation

Sample Code

annotate view SALESORDER with {
    @UI.TextArrangement: #TEXT_LAST
    customerid;
}

Sample Code

CAP CDS Annotation

Sample Code

annotate GWSAMPLE_BASIC.SalesOrder with {
    @Common.Text: Supplier_Name
    @UI.TextArrangement: #TextLast
    CustomerID;
}

In the preceding example, the text Customer is bound to the ContactID property and appears as shown in the following table:

Text Arrangement Type	Result
`TextLast`	ContractID (Customer)
`TextFirst`	Customer (ContractID)
`TextOnly`	Customer

Text Alignment

The DataPoint or DataField is aligned as shown in the following table:

Annotation Field	Table Alignment
`DataField`, Contact annotation	Left Aligned
`DataPoint` with or without `Criticality` or `CriticalityCalculation` OR property (either `DataField` or `DataPoint`) of type `Edm.DateTime` or `Edm.DateTimeOffset`	Right Aligned
`DataPoint` with `Criticality` and property of type `Edm.String`	Center Aligned

Table Cards

Table Cards

Hover over each action for a description. Click the action for more information.

Descriptor Settings: Title

Descriptor Settings: Subtitle

KPI annotation

Configuring View Switch

Configuring the Table Area

Example

Smart Links

Text Arrangement

Text Alignment

In this section:

Related information
